CANopen Position Sensor | 400mm Detection Range | IP65/IP67/IP68 Rated | High Resolution | by SICK
The CANopen Position Sensor is designed for precise position and orientation detection with a detection range of 400 mm and an operating height of 10 mm to 70 mm. Ideal for industrial automation and robotics, it features high resolution and repeat accuracy of 1 mm, along with robust IP65, IP67, and IP68 protection ratings. With a wide supply voltage range and shock resistance, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 400 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Communication interface: CANopen
- Protection class: III
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -20 °C to +70 °C
- Reverse polarity and short-circuit protection included
- Material: Metal, Aluminum, plastic housing; PUR cable
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Detection range of 400 mm with operating height from 10 mm to 70 mm
- High resolution and repeat accuracy of 1 mm
- Robust metal, aluminum, and plastic housing with IP65, IP67, and IP68 protection ratings
- Wide supply voltage range from 9 V DC to 30 V DC
- CANopen communication interface for easy integration
- Reverse polarity and short-circuit protection
- Shock and vibration resistant up to 30 g
- Ambient operating temperature range from -20 °C to +70 °C
- High update rate of 100 Hz with teach-in functionality
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and electrical wiring standards to ensure proper setup and safety.
Applications
- Industrial automation for position and orientation detection
- Robotics for precise angle and motion measurement
- Machine safety and monitoring systems
- Automated manufacturing processes requiring accurate sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption of 600 mW supports energy-efficient operation
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

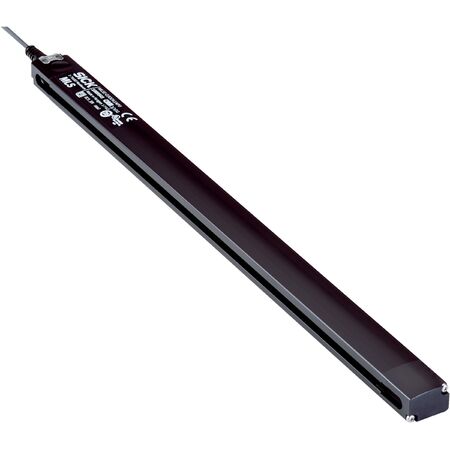

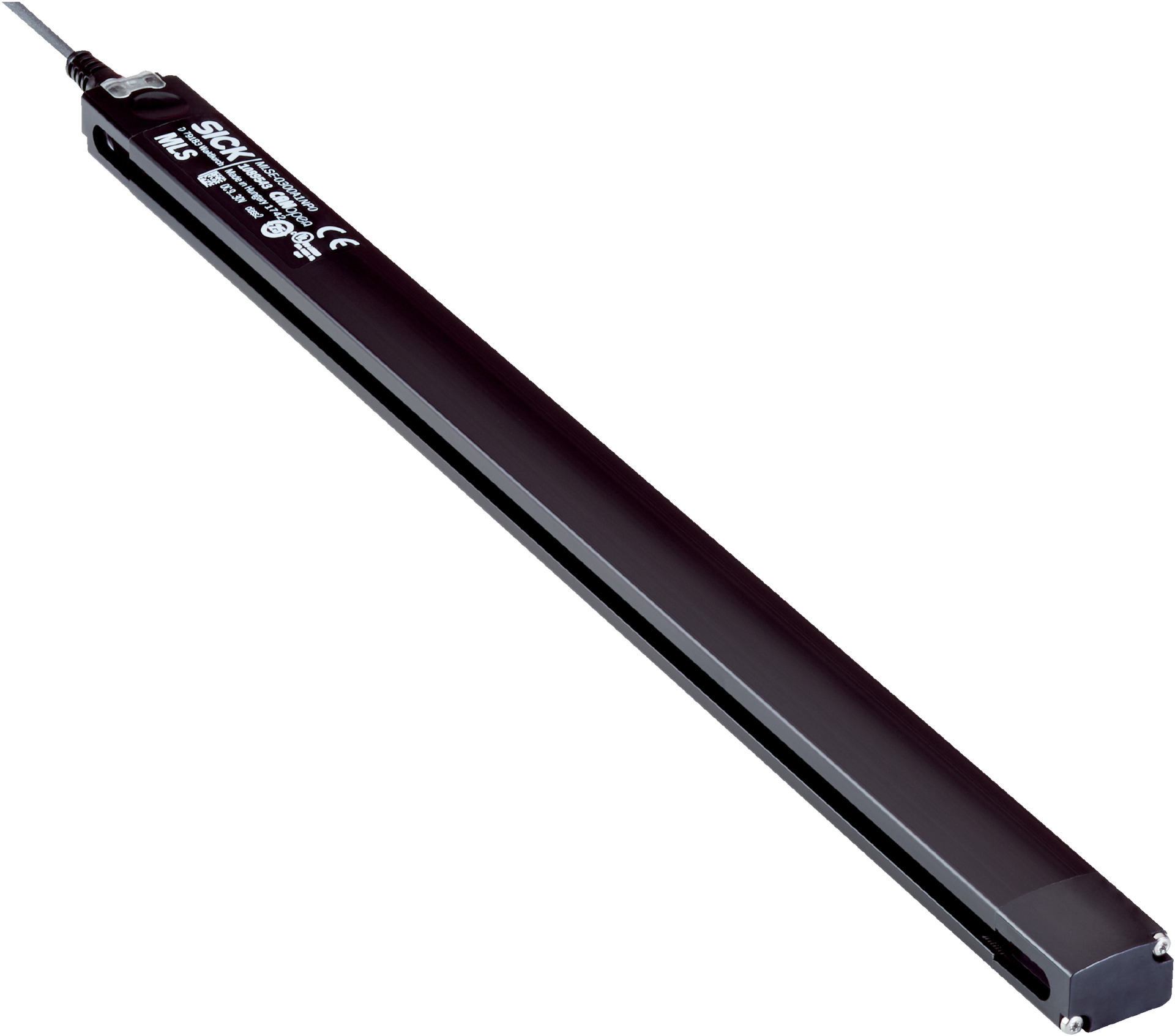

The SICK MLSE-0400A2NP0 sensor is available for immediate purchase, ideal for industrial automation, robotics, and machine safety applications.
