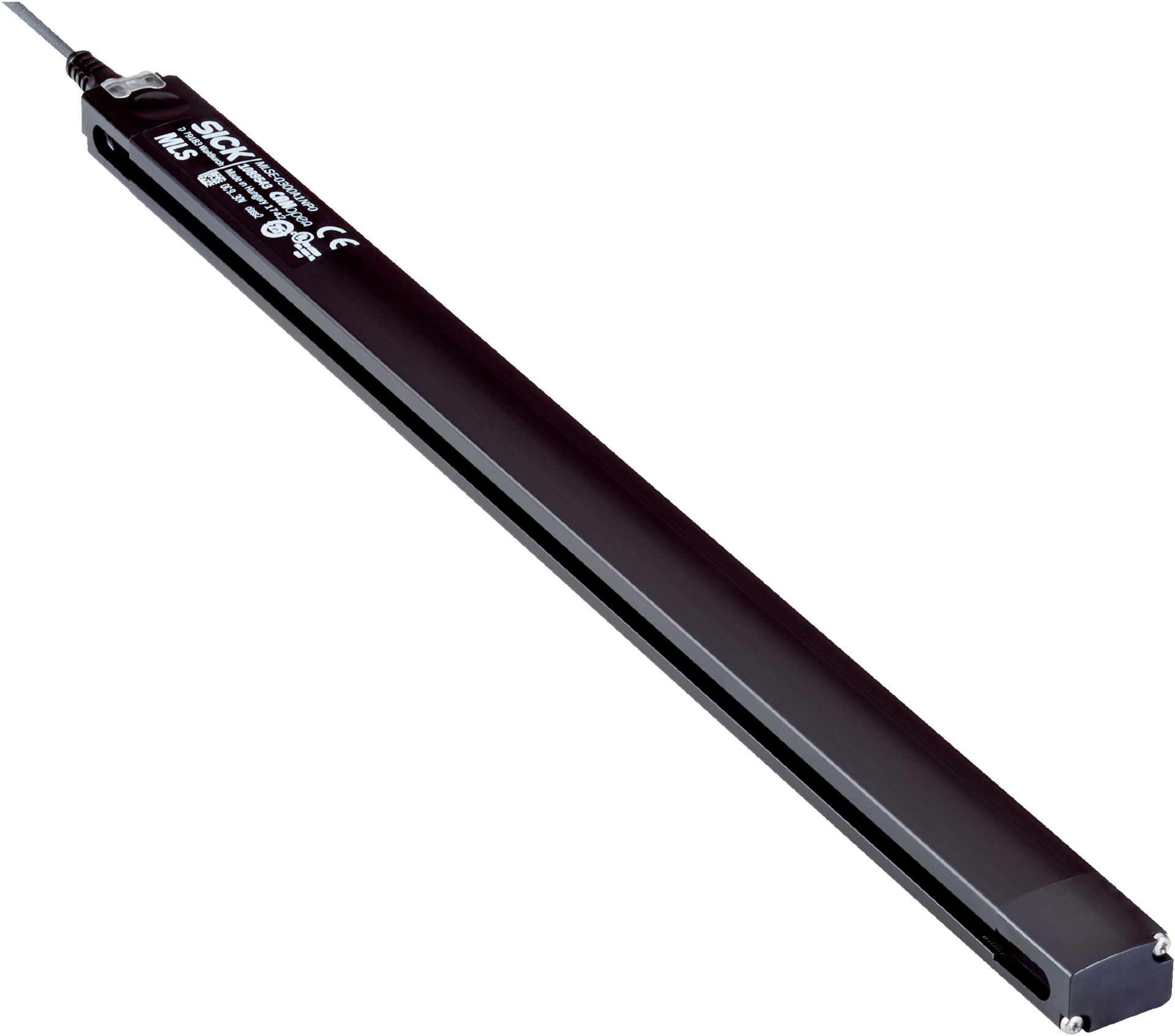

CANopen Proximity Sensor | 200 mm Detection Range | IP65/IP67/IP68 Rated | 100 Hz Update Rate | by SICK
The CANopen Proximity Sensor is designed for industrial automation, featuring a typical detection range of 200 mm and an operating height from 10 mm to 70 mm. With robust IP65/IP67/IP68 enclosure ratings and a 100 Hz update rate, this sensor ensures precise object detection and safety monitoring in various applications, making it ideal for robotics and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 200 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Communication interface: CANopen
- Protection class: III
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Housing material: Metal, Aluminum, plastic
- Cable material: PUR
- MTTFD: 143 years
- Mission time: 20 years
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 200 mm
- Operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring
- Enclosure rating IP65, IP67, IP68 for robust protection
- Supply voltage range from 9 V DC to 30 V DC
- Power consumption of 600 mW
- High resolution and repeat accuracy of 1 mm
- Update rate of 100 Hz with CANopen communication interface
- Reverse polarity and short-circuit protection
- Wide ambient operating temperature from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Metal, aluminum, and plastic housing with PUR cable
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with CANopen systems and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise object detection
- Robotics for position and orientation sensing
- Manufacturing process control
- Safety monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 600 mW reduces energy usage
- Durable IP65-IP68 rated housing extends product lifespan, reducing waste
- Compliance with China-RoHS supports environmentally safe materials
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

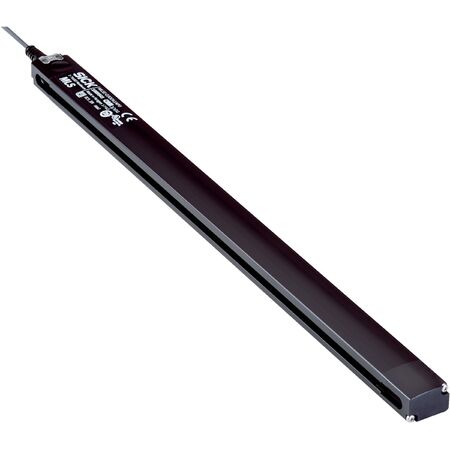

The SICK MLSE-0200A2NP0 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
