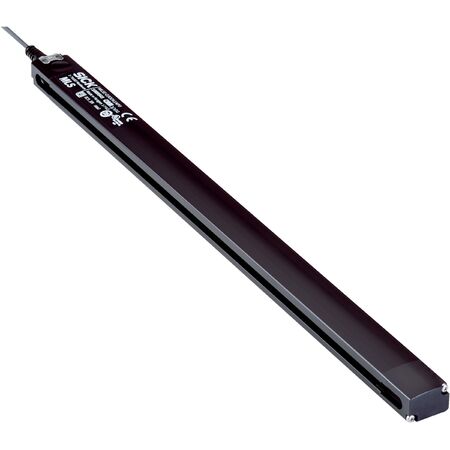

CANopen Proximity Sensor | 200mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The CANopen Proximity Sensor MLSE-0200A2TP0 offers a typical detection range of 200 mm and operates effectively at heights from 10 mm to 70 mm. Designed for industrial automation, this sensor features robust IP65/IP67/IP68 protection, ensuring reliability in harsh environments. With a resolution of 1 mm and an update rate of 100 Hz, it’s perfect for precise object detection and positioning in robotics and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 200 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Terminal resistor: Internal 120 Ω terminator
- Protection class: III
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function available
- Reverse polarity and short-circuit protection
- Connection type: Cable with M8 male connector, 4-pin, 0.3 m
- Material: Metal, Aluminum, plastic housing; PUR cable
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -20 °C to +70 °C
- Communication interface: CANopen
- Orientation: 3 axes with ±180° roll/yaw and ±90° pitch range
- Resolution: 0.02°
- Roll, pitch, yaw repeatability: ±1°
- Maximum rotation rate: 2,000 °/s
- Sampling rate: 200 Hz
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 200 mm with operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring with internal 120 Ω terminator
- High protection rating with IP65, IP67, and IP68
- Supply voltage range from 9 V DC to 30 V DC
- Resolution and repeat accuracy of 1 mm
- Update rate of 100 Hz with CANopen communication interface
- Robust design with shock and vibration resistance up to 30 g
- Reverse polarity and short-circuit protection
- Metal, aluminum, and plastic housing with PUR cable
- Orientation measurement with 3 axes and high repeatability
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with CANopen systems and electrical wiring standards to ensure proper setup and safety.
Applications
- Industrial automation for precise object detection and positioning
- Robotics for orientation and motion sensing
- Safety systems requiring reliable sensor data
- Machine monitoring and control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption of 600 mW reduces energy usage
- Durable construction extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLSE-0200A2TP0 sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise detection and orientation measurement.
