CANopen Proximity Sensor | 600mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The CANopen Proximity Sensor is designed for industrial automation, featuring a typical detection range of 600 mm and an operating height from 10 mm to 70 mm. With a robust IP65/IP67/IP68 rating, this sensor ensures reliable performance in harsh environments, making it ideal for object detection and positioning in manufacturing and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 600 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Supply voltage: 9 V DC to 30 V DC
- Terminal resistor: Internal 120 Ω terminator
- Protection class: III
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in: Yes
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Internal terminating resistor (CAN): Yes
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Connection type: Cable with M8 male connector, 4-pin, 0.3 m
- Material housing: Metal, Aluminum, plastic
- Cable: PUR
- MTTFD: 94 years
- Mission time: 20 years
- Communication interface: CANopen
- Orientation axes: 3
- Roll, Pitch, Yaw Euler angle measuring range: ±180°, ±90°, ±180°
- Resolution: 0.02°
- Roll, Pitch, Yaw repeatability: ±1°
- Maximum rotation rate: 2,000 °/s
- Sampling rate: 200 Hz
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 600 mm with operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring with supply voltage from 9 V DC to 30 V DC
- High protection rating with IP65, IP67, and IP68
- Internal 120 Ω terminal resistor and reverse polarity protection
- Short-circuit protection and internal terminating resistor for CAN interface
- High resolution and repeat accuracy of 1 mm
- Update rate of 100 Hz with teach-in functionality
- Shock and vibration resistant up to 30 g
- Communication interface: CANopen
- Ambient operating temperature range from -20 °C to +70 °C
- Metal, aluminum, and plastic housing with PUR cable
- Certified with cULus, CANopen, and multiple international conformity declarations
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection and positioning
- Robotics for orientation and motion sensing
- Safety systems requiring precise detection and communication
- Machine monitoring and control in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 600 mW reduces energy usage
- Durable IP65-IP68 rated housing extends product life and reduces waste
- Compliance with China-RoHS supports environmentally safe materials
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

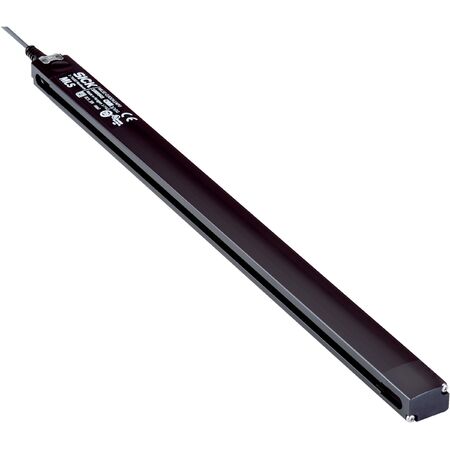

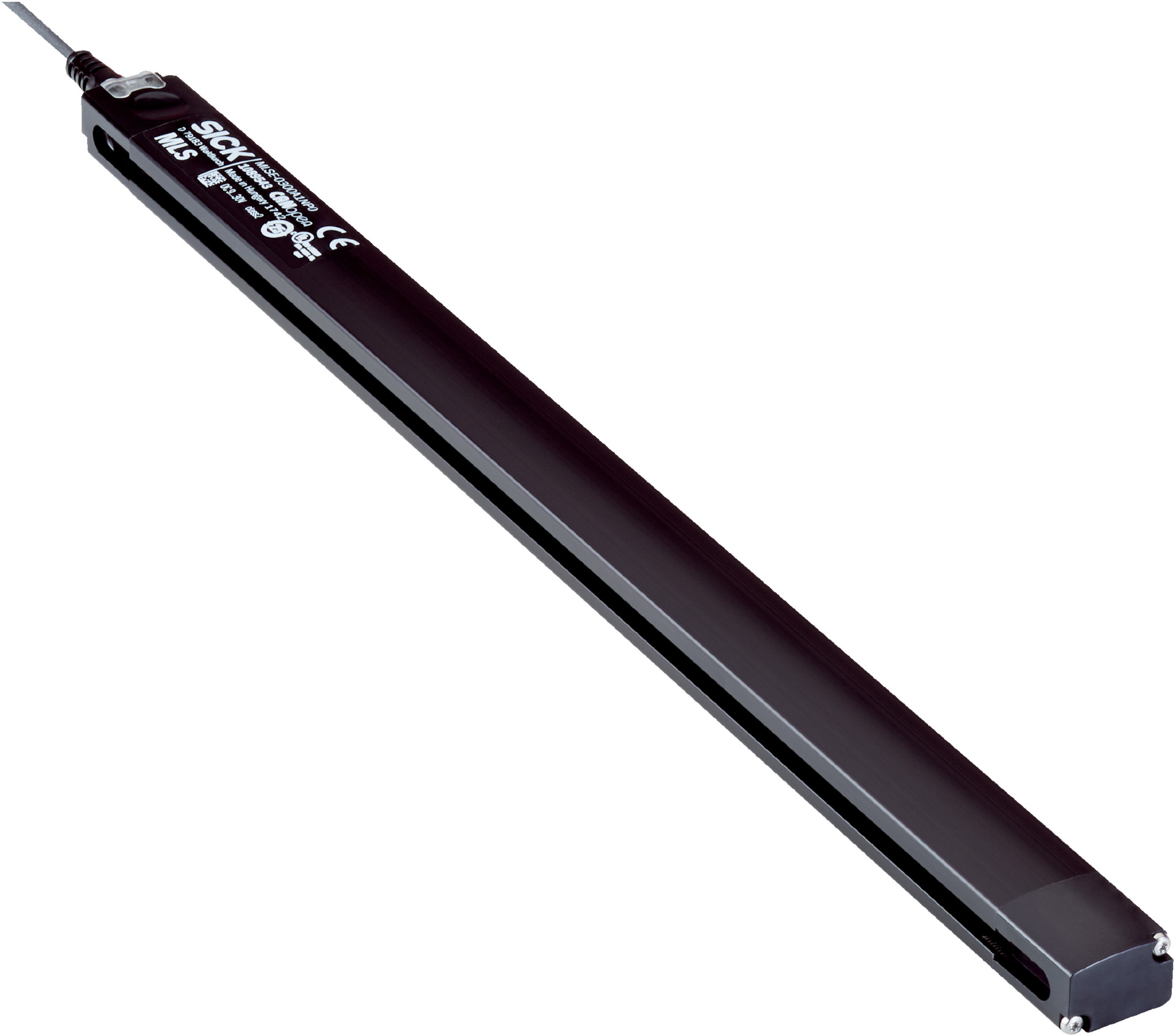

The SICK MLSE-0600A2TP0 sensor is available for immediate purchase, ideal for industrial automation and safety system applications.
