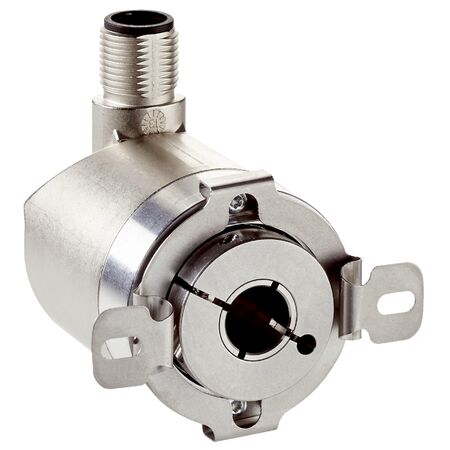

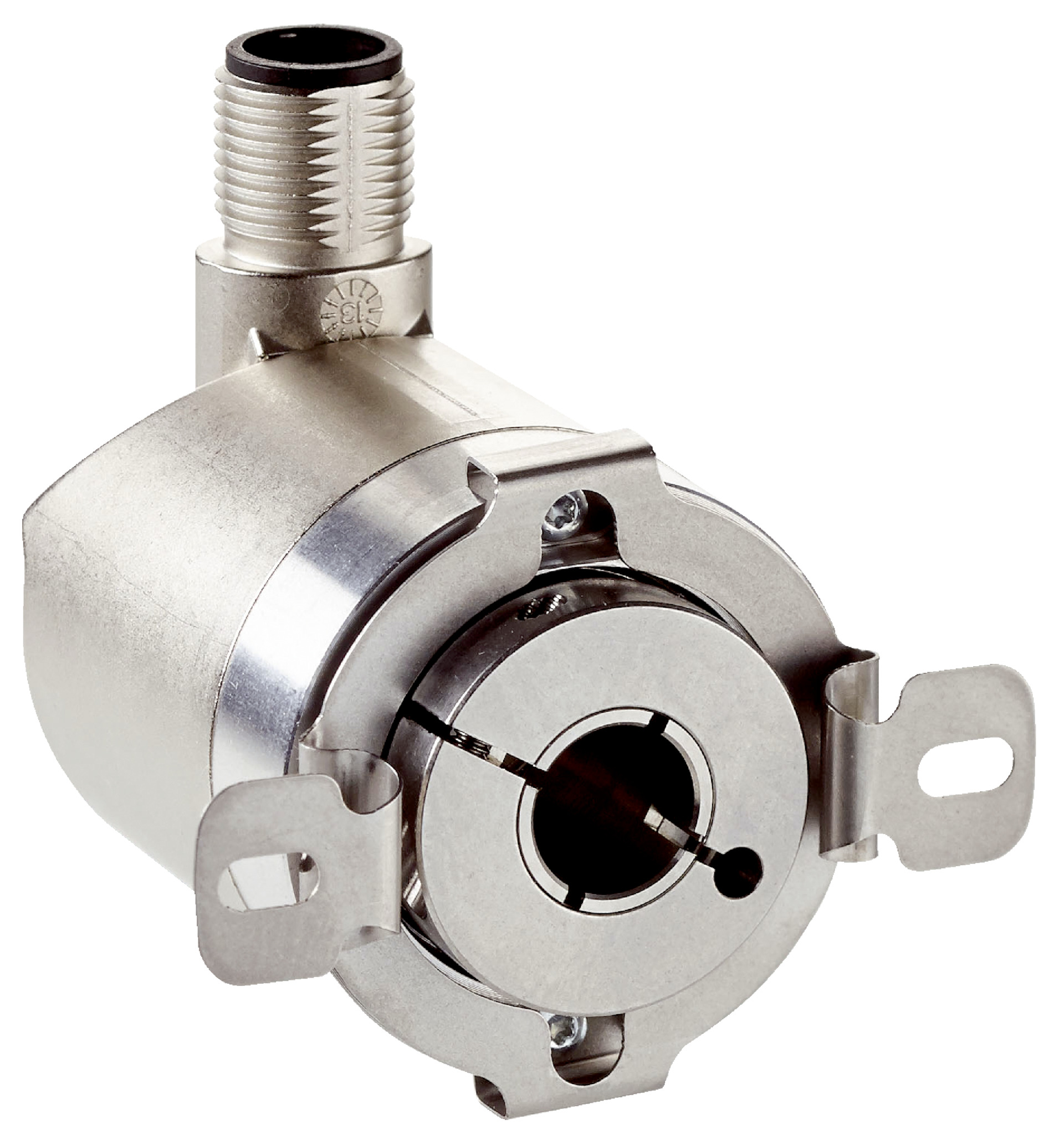

CANopen Rotary Encoder AHM36A-BKCC014x12 | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The CANopen Rotary Encoder AHM36A-BKCC014x12 delivers exceptional precision with a maximum resolution of 16,384 steps per revolution and robust IP66/IP67 rated enclosure, making it perfect for industrial automation and robotics. Designed for high reliability, it operates in extreme temperatures from -40°C to +85°C, ensuring optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Connection type: Male M12 5-pin connector
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (no load)
- Mechanical design: Blind hollow shaft, 1/4 inch diameter, front clamp
- Materials: Stainless steel shaft, aluminum flange, zinc housing
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: -40°C to +85°C
- Enclosure rating: IP66 and IP67
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple protocols supported
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40°C to +85°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High reliability with MTTFD of 270 years and bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial encoder systems and CANopen networks is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution and reliability
- Machine tools and manufacturing equipment
- Safety-related control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36A-BKCC014x12 encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
