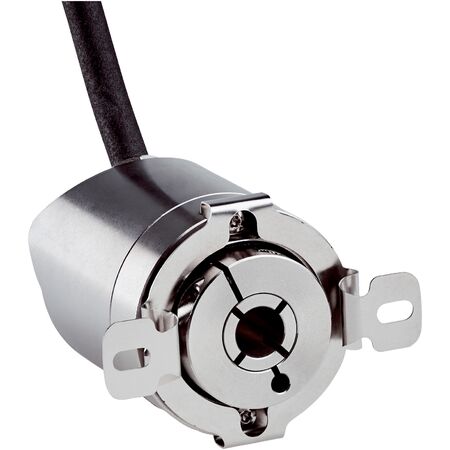

CANopen Rotary Encoder AHM36I-BBCK014x12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The CANopen Rotary Encoder AHM36I-BBCK014x12 offers high resolution with 16,384 steps per revolution, making it ideal for industrial automation and robotics. Built for durability with a robust stainless steel housing and an IP67/IP69K rating, it ensures reliable performance in harsh environments. With low power consumption and extensive diagnostic capabilities, this encoder is perfect for safety-critical applications requiring precise feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Resolution: 16,384 steps per revolution (14 bit), 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Power supply: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection: 5-wire cable, 1.5 m
- Mechanical design: Blind hollow shaft, 8 mm diameter, front clamp
- Materials: Stainless steel 1.4305 for shaft, flange, stator coupling, housing; PUR cable
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia: 23 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Protection rating: IP67 and IP69K
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple protocols supported
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Wide operating temperature range from -40°C to +85°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Blind hollow shaft with front clamp for secure mounting
- Extensive diagnostic data available including temperature and operating hours
- Long bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial encoder mounting to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution and reliability
- Machine tools and manufacturing equipment
- Safety-related applications requiring reliable feedback
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in industrial systems
- Long bearing lifetime minimizes maintenance and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-BBCK014x12 encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
