Cantilever Bracket 450mm | Heavy Duty Support | Galvanised Steel | 170 kg Load Capacity | by Supplico
The Cantilever Bracket 450mm is designed for heavy-duty support, featuring a robust single arm design and a working load capacity of 170 kg. Made from fully galvanised steel, it’s perfect for industrial shelving, warehouse storage, and structural support. Ensure secure mounting with professional installation for optimal safety and compliance with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cantilever Bracket 450mm | Heavy Duty Support | Galvanised Steel | 170 kg Load Capacity | by Supplico
Brand: Supplico
SKU: ICB450
Alternatively Known As: 450mm Cantilever Arm Bracket, Heavy Duty Cantilever Support, Galvanised Cantilever Bracket
Technical Specifications
- Length: 450mm
- Working Load Capacity: 170 kg
- Material: Fully galvanised steel
- Weight: 1.42 kg

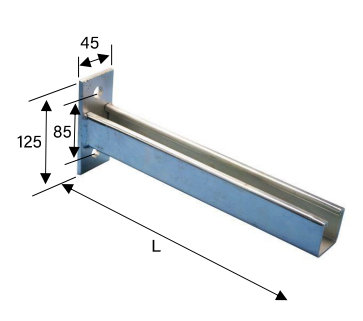

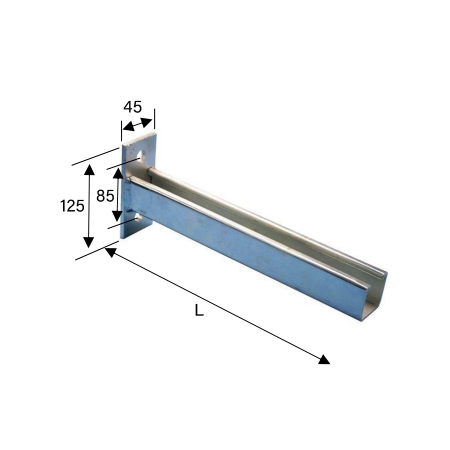

- Dimensions (H x L x W): 50mm x 450mm x 50mm
- Weight: 1.42 kg
Key Features
- Fully galvanised after fabrication for heavy duty protection
- Single arm cantilever bracket design
- Supports a working load of up to 170 kg
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure secure mounting and load safety.
Applications
- Industrial shelving support
- Warehouse storage solutions
- Heavy duty racking systems
- General structural support for cantilevered loads
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanised coating extends product life reducing replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Supplico warranty terms for details.
Available Now
The Supplico Cantilever Bracket 450mm is available for immediate purchase, ideal for heavy duty industrial and warehouse shelving support.
