Cantilever Bracket HDG | 750mm Length | Heavy Duty Galvanised | Ezy Strut

BRAND: EzyStrut
SKU: CB2-750H
$38.20 List price: $46.20
+
Cantilever bracket with 750mm length and heavy-duty galvanised finish—ideal for industrial and commercial cable support systems. Built for durability, with E1000 channel design and compliance with AS/NZS 1170 standards.

Product Name/Title: CB2-750H Cantilever Bracket HDG

Brand: Ezy Strut

SKU: CB2-750H

Alternatively Known As: Heavy Duty Cantilever Bracket, Ezy Strut Cantilever Bracket, CB2 Bracket

Technical Specifications
  • Channel: E1000
  • Hole Diameter: 14mm
  • Hole Spacing: 20.5mm from end

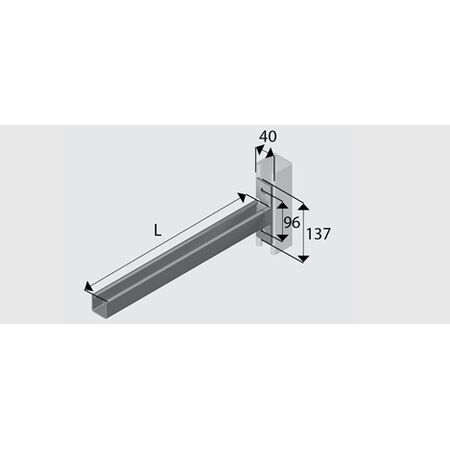

  • Dimensions (H x L x W): 41mm x 750mm x 41mm
  • Weight: 2.5 kg
Key Features
  • 150mm to 900mm long cantilever design using E1000 41x41mm channel/strut.
  • Fully galvanised after fabrication for heavy duty protection.
  • Available in stainless steel grade 316 for corrosive environments.
  • Fibreglass brackets available upon request.
Professional Installation Requirements
  • Professional installation is recommended to ensure proper support and safety.
Applications
  • Industrial: Cable support systems in various applications
  • Commercial: Use in building and construction projects
Standards & Compliance
  • Complies with AS/NZS 1170 for structural design actions.
Environmental Benefits
  • Galvanised finish enhances longevity, reducing the need for replacements and waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CB2-750H Cantilever Bracket HDG is available now for immediate purchase. Ideal for industrial and commercial applications.
