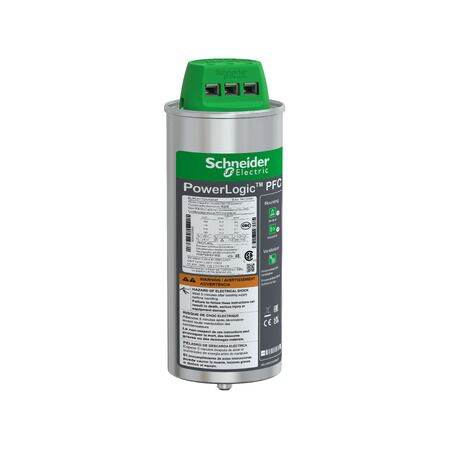

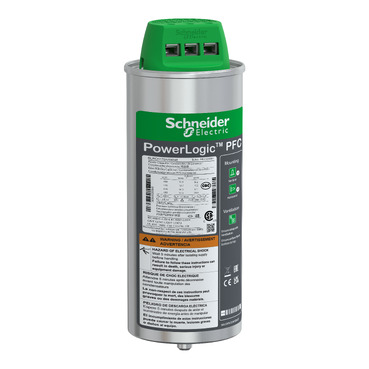

Capacitor CAN HDY 17/20.4KVAR | Self-Healing Technology | Overpressure Disconnector | Durable Aluminium Can | @Pack of 1 | by Clipsal
The Capacitor CAN HDY 17/20.4KVAR is designed for effective power factor correction in industrial and commercial applications. Featuring self-healing metallized polypropylene film technology and an overpressure disconnector, this capacitor ensures high reliability and safety. Ideal for HVAC systems and large motor installations, it helps improve energy efficiency while reducing electricity consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capacitor CAN HDY 17/20.4KVAR | Self-Healing Technology | Overpressure Disconnector | Durable Aluminium Can | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBLRCH170A204B48
Alternatively Known As: Power Factor Correction Capacitor, 3-Phase Capacitor, Industrial Capacitor, Clipsal Power Capacitor, HDY Capacitor
Technical Specifications
- Rated Power: 17/20.4 kVAR
- Rated Voltage: 415V AC
- Frequency: 50 Hz
- Technology: Self-healing metallized polypropylene film
- Discharge Resistor: Integrated
- Overpressure Disconnector: Yes
- Case: Aluminium can
- Connection: 3-phase
- Operating Temperature: -25°C to +55°C
- Standards: IEC 60831-1/2
- Dimensions (H x L x W): 300mm x 85mm x 85mm
- Weight: 7.5 kg
Key Features
- Heavy-duty cylindrical aluminium can design for durability
- Self-healing metallized polypropylene film technology
- Overpressure disconnector for enhanced safety
- Low loss and high reliability
- Suitable for 3-phase applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced in power factor correction systems to ensure safe and optimal operation.
Applications
- Industrial power factor correction panels
- Commercial electrical distribution boards
- HVAC systems
- Renewable energy systems
- Large motor installations
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by reducing reactive power losses
- Lowers overall electricity consumption and carbon footprint
- Reduces strain on electrical infrastructure
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Clipsal Capacitor CAN HDY 17/20.4KVAR is available for immediate purchase. Ideal for industrial and commercial power factor correction applications.
