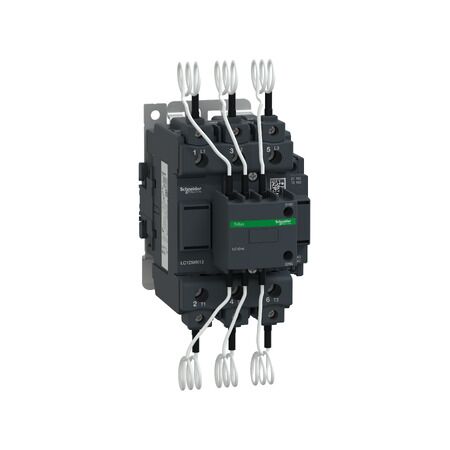

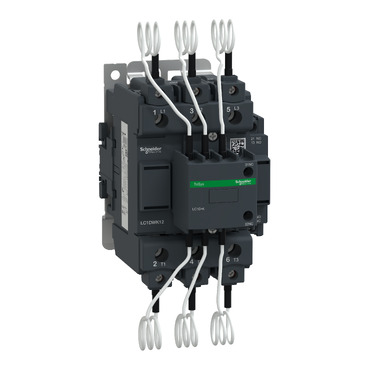

Capacitor Duty Contactor | 3-Pole Design | 60 kVAR at 415V | 230V AC Coil | @Pack of 1 | by Clipsal
The Capacitor Duty Contactor is specifically designed for capacitor switching applications, featuring a robust 3-pole design that handles up to 60 kVAR at 415V. Ideal for power factor correction in industrial and commercial settings, this contactor ensures reliable operation with a long electrical and mechanical life, making it a perfect choice for optimizing energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capacitor Duty Contactor | 3-Pole Design | 60 kVAR at 415V | 230V AC Coil | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1DWK12P7
Alternatively Known As: Capacitor Duty Contactor, Power Factor Correction Contactor, LC1D.K Capacitor Contactor, Clipsal Capacitor Contactor, SCHLC1DWK12P7
Technical Specifications
- Type: Capacitor duty contactor
- Poles: 3P
- Rated operational power: 60 kVAR at 415V AC
- Coil voltage: 230V AC
- Rated insulation voltage: 690V
- Frequency: 50/60 Hz
- Conforms to IEC 60947-4-1
- High inrush current capability
- Mechanical durability: up to 10 million operations
- Electrical durability: up to 1 million operations
- Dimensions (H x L x W): 120mm x 130mm x 85mm
- Weight: 1.2 kg
Key Features
- Specifically designed for capacitor switching applications
- 3-pole contactor for balanced three-phase operation
- Handles up to 60 kVAR at 415V
- Equipped with 230V AC coil
- High inrush current withstand capability
- Long electrical and mechanical life
- Reliable operation for power factor correction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Power factor correction panels
- Industrial capacitor banks
- Commercial electrical distribution systems
- Switching of capacitor banks in low voltage networks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by enabling effective power factor correction
- Reduces energy losses in electrical systems
- Supports lower greenhouse gas emissions by optimizing power usage
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TeSys LC1D.K Capacitor Duty Contactor SCHLC1DWK12P7 is available for immediate purchase. Ideal for industrial and commercial power factor correction applications.
