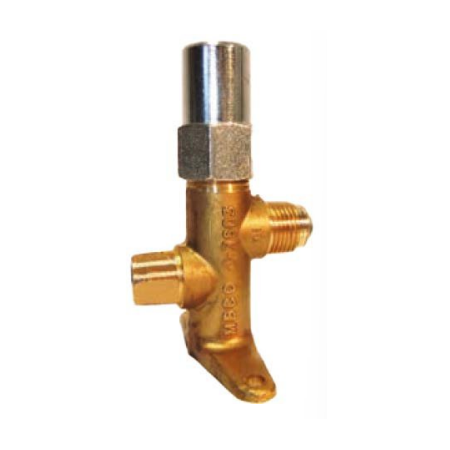

Capped Line Valve | 140 Bar Pressure Rating | Brass Body & Stainless Steel Stem | by Aspen Pumps
The Capped Line Valve is engineered for HVAC systems requiring CO2 refrigerant line control, featuring a robust 140 bar pressure rating and a durable forged brass body. Ideal for commercial refrigeration and air conditioning installations, this valve ensures minimal pressure drop and extended service life, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve | 140 Bar Pressure Rating | Brass Body & Stainless Steel Stem | by Aspen Pumps
Brand: Aspen Pumps
SKU: 427-0606
Alternatively Known As: CO2 Line Valve, Flare/Solder Valve, Refrigeration Service Valve, Brass Capped Valve
Technical Specifications
- Pressure rating: 140 bar
- Connection sizes: 3/8 inch ID (Lower) x 3/8 inch MSAE
- Body material: Forged or solid brass
- Stem material: Polished stainless steel
- Refrigerant compatibility: R-410A and CO2
- Standards compliance: ISO/AS 5149.2, UL, CE
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Engineered for minimal pressure drop and extended service life
- Forged or solid brass body for durability
- Polished stainless steel stem for corrosion resistance
- Compatible with R-410A refrigerant and CO2 compliant up to 60 bar
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed plumber is recommended to ensure proper connection and system integrity.
Applications
- HVAC systems requiring CO2 refrigerant line control
- Commercial refrigeration and air conditioning installations
- Service and maintenance of CO2 refrigeration lines
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Supports use of CO2 refrigerant, a natural refrigerant with low global warming potential
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Capped Line Valve is available for immediate purchase, ideal for HVAC and refrigeration service applications.
