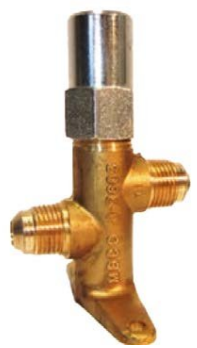

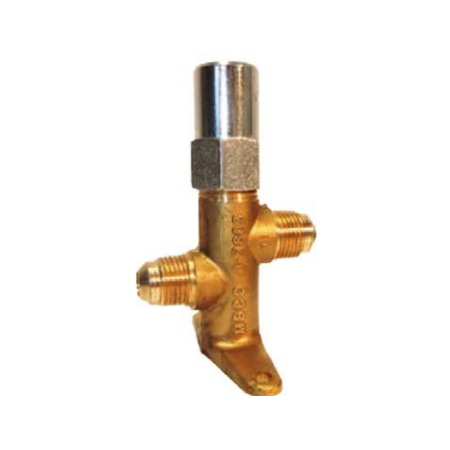

Capped Line Valve - Flare CO2 | 120 Bar Pressure Rating | Forged Brass Body | Polished Stainless Steel Stem | by Aspen Pumps
The Capped Line Valve - Flare CO2 is engineered for HVAC and refrigeration systems, featuring a robust 120 Bar pressure rating and a durable forged brass body. Designed for minimal pressure drop and extended service life, this valve is compatible with R-410A and CO2 refrigerants, making it ideal for industrial and commercial applications. Ensure compliance and system integrity with this high-quality service valve.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve - Flare CO2 | 120 Bar Pressure Rating | Forged Brass Body | Polished Stainless Steel Stem | by Aspen Pumps
Brand: Aspen Pumps
SKU: 420-1010
Alternatively Known As: Flare CO2 Service Valve, Capped Line Valve for CO2 Systems, HVAC Service Valve
Technical Specifications
- Pressure rating: 120 Bar
- Material: Forged or solid brass body with polished stainless steel stem
- Refrigerant compatibility: R-410A and CO2
- Standards compliance: ISO/AS 5149.2, UL, CE
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
- Engineered for minimal pressure drop and extended service life
- Forged or solid brass body for durability
- Polished stainless steel stem for corrosion resistance
- Compatible with R-410A refrigerant and CO2 compliant up to 60 bar
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed plumber is recommended to ensure system integrity and compliance.
Applications
- HVAC systems requiring service valves
- CO2 refrigeration and cooling systems
- Industrial and commercial refrigeration applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Supports use in environmentally friendly CO2 refrigeration systems
- Designed for long service life reducing replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps for specific warranty details.
Available Now
The Aspen Pumps Capped Line Valve - Flare CO2 120 Bar is available for immediate purchase, ideal for HVAC and refrigeration service applications.
