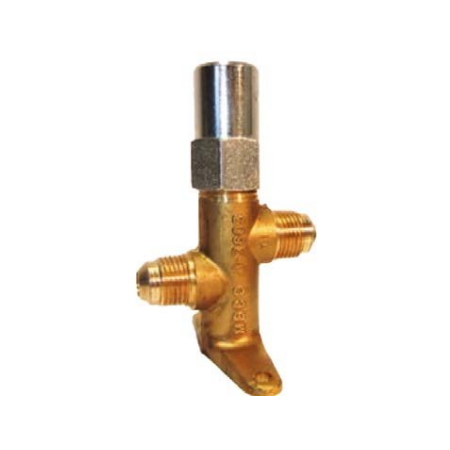

Capped Line Valve - Flare CO2 | 120 Bar Pressure Rating | Forged Brass Body | Polished Stainless Steel Stem | by Aspen Pumps
The Capped Line Valve - Flare CO2 is engineered for HVAC systems requiring CO2 refrigerant line control, featuring a robust forged brass body and polished stainless steel stem for enhanced durability and corrosion resistance. With a pressure rating of up to 120 bar, this valve is ideal for commercial refrigeration and air conditioning systems, ensuring minimal pressure drop and extended service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve - Flare CO2 | 120 Bar Pressure Rating | Forged Brass Body | Polished Stainless Steel Stem | by Aspen Pumps
Brand: Aspen Pumps
SKU: 420-0404
Alternatively Known As: CO2 Flare Line Valve, Capped Refrigeration Valve, Service Valve for CO2 Systems
Technical Specifications
- Body Material: Forged or solid brass
- Stem Material: Polished stainless steel
- Pressure Rating: Up to 120 bar
- Refrigerant Compatibility: R-410A and CO2
- Standards Compliance: ISO/AS 5149.2, UL, CE
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
- Engineered for minimal pressure drop and extended service life
- Forged or solid brass body for durability
- Polished stainless steel stem for corrosion resistance
- Compatible with R-410A refrigerant and CO2 compliant up to 60 bar
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed plumber is recommended to ensure proper sealing and system integrity.
Applications
- HVAC systems requiring CO2 refrigerant line control
- Commercial refrigeration and air conditioning systems
- Service and maintenance of CO2 refrigeration lines
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigeration systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Supports use of CO2 refrigerant, a natural refrigerant with low global warming potential
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Capped Line Valve - Flare CO2 120 Bar is available for immediate purchase, ideal for HVAC and refrigeration service applications.
