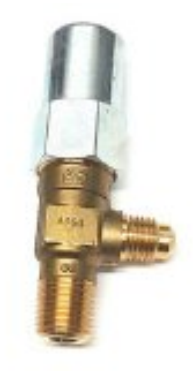

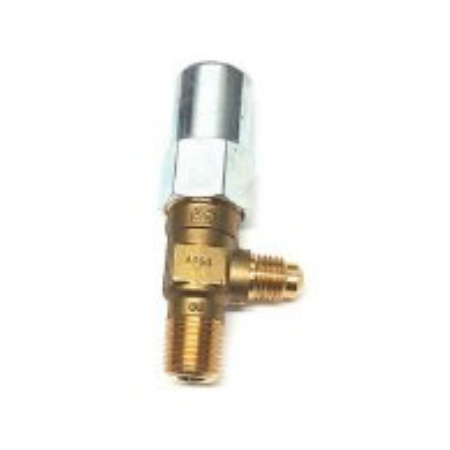

Capped Line Valve - Flare/MBSP | Forged Brass Body | Polished Stainless Steel Stem | R-410A Compatible | by Aspen Pumps
The Capped Line Valve - Flare/MBSP is engineered for HVAC and refrigeration systems, featuring a durable forged brass body and a polished stainless steel stem for corrosion resistance. Ideal for service applications, it minimizes pressure drop and is compatible with R-410A refrigerant, ensuring efficient performance in industrial and commercial fluid control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve - Flare/MBSP | Forged Brass Body | Polished Stainless Steel Stem | R-410A Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 421-0606
Alternatively Known As: Service Valve, HVAC Line Valve, Refrigeration Valve, Brass Capped Valve
Technical Specifications
- Body Material: Forged or solid brass
- Stem Material: Polished stainless steel
- Refrigerant Compatibility: R-410A, CO2 compliant up to 60 bar
- Standards: ISO/AS 5149.2, UL, CE
- Dimensions (H x L x W): 70mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Engineered for minimal pressure drop and extended service life
- Forged or solid brass body for durability
- Polished stainless steel stem for corrosion resistance
- Compatible with R-410A refrigerant and CO2 compliant up to 60 bar
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and system integrity.
Applications
- HVAC systems requiring service valves
- Refrigeration and air conditioning line servicing
- Industrial and commercial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Compatible with environmentally friendly refrigerants like R-410A and CO2
- Designed to minimize refrigerant leakage and pressure loss
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The Aspen Pumps Capped Line Valve (3/8 MSAE x 3/8 MBSP) is available for immediate purchase, ideal for HVAC and refrigeration service applications.
