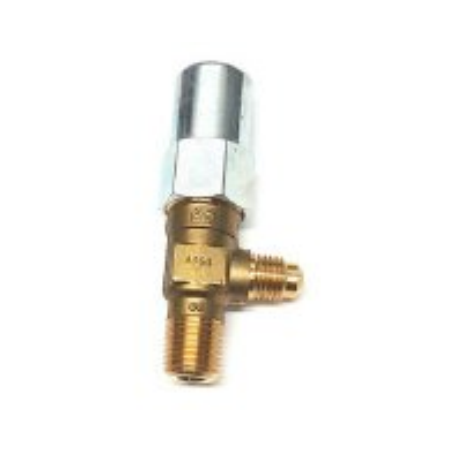

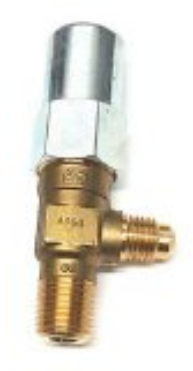

Capped Line Valve - Flare/MBSP | Forged Brass Body | Polished Stainless Steel Stem | R-410A Compatible | by Aspen Pumps
The Capped Line Valve - Flare/MBSP is engineered for HVAC systems, featuring a durable forged brass body and a polished stainless steel stem for corrosion resistance. Ideal for refrigerant line isolation and service, it ensures minimal pressure drop and is compatible with R-410A refrigerant, making it a reliable choice for both industrial and commercial refrigeration applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve - Flare/MBSP | Forged Brass Body | Polished Stainless Steel Stem | R-410A Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 421-0808
Alternatively Known As: Service Valve, Refrigeration Line Valve, HVAC Line Valve, Brass Capped Valve
Technical Specifications
- Body Material: Forged or solid brass
- Stem Material: Polished stainless steel
- Refrigerant Compatibility: R-410A, CO2 compliant up to 60 bar
- Standards: ISO/AS 5149.2, UL, CE
- Connection Type: 1/2 inch MSAE flare x 1/2 inch MBSP
- Dimensions (H x L x W): 70mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Engineered for minimal pressure drop and extended service life
- Forged or solid brass body for durability
- Polished stainless steel stem for corrosion resistance
- Compatible with R-410A refrigerant and CO2 compliant up to 60 bar
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician to ensure proper sealing and system integrity.
Applications
- HVAC systems for refrigerant line isolation
- Air conditioning and refrigeration service and maintenance
- Industrial and commercial refrigeration systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Compatible with environmentally friendly refrigerants like R-410A and CO2
- Designed to minimize refrigerant leakage, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Aspen Pumps Capped Line Valve is available for immediate purchase, ideal for HVAC and refrigeration service applications.
