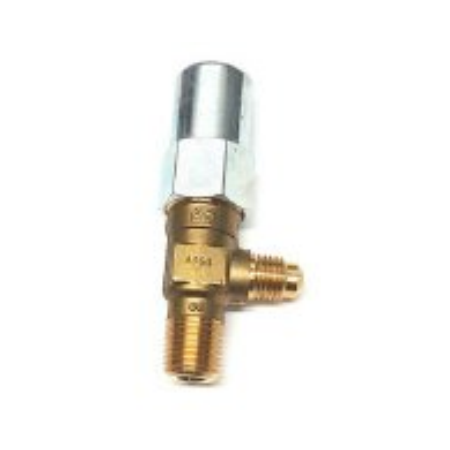

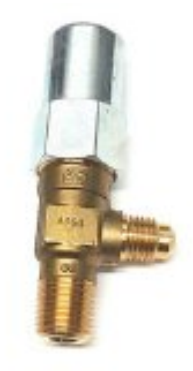

Capped Line Valve - Flare/MBSP | Forged Brass Body | Polished Stainless Steel Stem | Compatible with R-410A | by Aspen Pumps
The Capped Line Valve - Flare/MBSP is engineered for HVAC and refrigeration systems, featuring a durable forged brass body and a polished stainless steel stem for corrosion resistance. Designed to minimize pressure drop and refrigerant leakage, this valve is compatible with R-410A and CO2, making it ideal for efficient industrial fluid control and maintenance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve - Flare/MBSP | Forged Brass Body | Polished Stainless Steel Stem | Compatible with R-410A | by Aspen Pumps
Brand: Aspen Pumps
SKU: 421-0604
Alternatively Known As: Service Valve, HVAC Line Valve, Refrigeration Valve, Brass Capped Valve
Technical Specifications
- Body Material: Forged or solid brass
- Stem Material: Polished stainless steel
- Connection Type: 3/8 MSAE flare x 1/4 MBSP
- Pressure Rating: Compatible with up to 60 bar
- Refrigerant Compatibility: R-410A, CO2 compliant
- Standards: ISO/AS 5149.2, UL, CE
- Dimensions (H x L x W): 40mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Engineered for minimal pressure drop and extended service life
- Forged or solid brass body for durability
- Polished stainless steel stem for corrosion resistance
- Compatible with R-410A refrigerant and CO2 compliant up to 60 bar
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed plumber is recommended to ensure proper sealing and system integrity.
Applications
- HVAC systems requiring service valves
- Refrigeration and air conditioning maintenance
- Industrial fluid control systems
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Compatible with environmentally friendly refrigerants like R-410A and CO2
- Designed to minimize refrigerant leakage and pressure drop, improving system efficiency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Aspen Pumps Capped Line Valve (3/8 MSAE x 1/4 MBSP) is available now for immediate purchase. Ideal for HVAC and refrigeration service applications.
