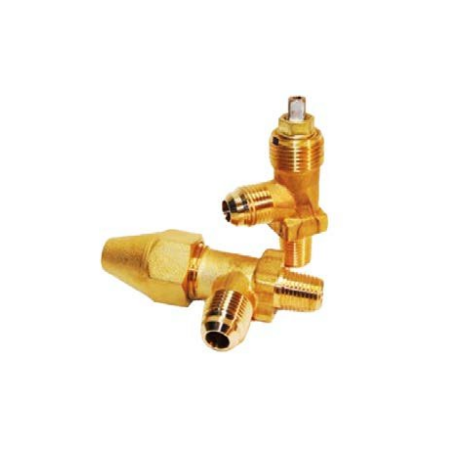

Capped Line Valve - Flare /MNPT | 3/8 NPT x 3/8 SAE | Forged Brass & Stainless Steel | CO2 Compliant | by Aspen Pumps
The Capped Line Valve - Flare /MNPT is engineered for HVAC and refrigeration systems, featuring a durable forged brass body and polished stainless steel stem. Designed to minimize pressure drop and refrigerant leakage, this valve is ideal for service and maintenance applications, ensuring reliable performance in industrial fluid control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve - Flare /MNPT | 3/8 NPT x 3/8 SAE | Forged Brass & Stainless Steel | CO2 Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 422-0606
Alternatively Known As: Service Valve, HVAC Line Valve, Refrigeration Valve, Flare Line Valve
Technical Specifications
- Connection Size: 3/8 NPT x 3/8 SAE
- Body Material: Forged or solid brass
- Stem Material: Polished stainless steel
- Pressure Rating: CO2 compliant up to 60 bar
- Standards: ISO/AS 5149.2, UL, CE
- Dimensions (H x L x W): 70mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Engineered for minimal pressure drop and extended service life
- Forged or solid brass body for durability
- Polished stainless steel stem for corrosion resistance
- Compatible with R-410A refrigerant and CO2 compliant up to 60 bar
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper sealing and system integrity.
Applications
- HVAC systems requiring service valves
- Refrigeration and air conditioning maintenance
- Industrial fluid control systems
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Compatible with environmentally friendly refrigerants such as R-410A and CO2
- Designed to minimize refrigerant leakage and pressure loss
Warranty Information
Standard manufacturer warranty applies; typically 1 year against defects.
Available Now
The Aspen Pumps Capped Line Valve is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and installation.
