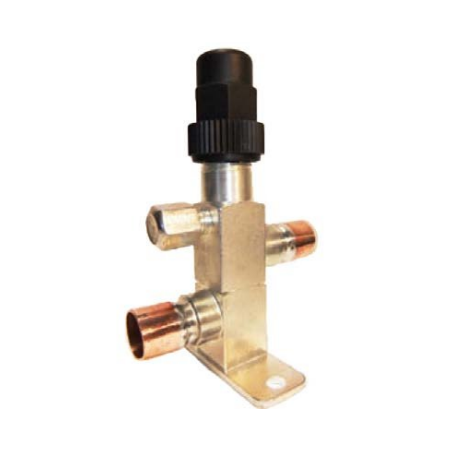

Capped Line Valve - Solder with Access | 3/8 inch ID | Triple Diaphragm Design | Stainless Steel & Bronze | by Aspen Pumps
The Capped Line Valve - Solder with Access is designed for HVAC and refrigeration systems, featuring a 3/8 inch ID and a unique triple diaphragm construction. Made from durable stainless steel and bronze, it supports high flow and low temperature applications, ensuring reliable performance with R-410A refrigerant. Ideal for professional installation, this valve meets ISO/AS 5149.2, UL, and CE standards for safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Capped Line Valve - Solder with Access | 3/8 inch ID | Triple Diaphragm Design | Stainless Steel & Bronze | by Aspen Pumps
Brand: Aspen Pumps
SKU: 435-0606
Alternatively Known As: Solder Line Valve with Access, HVAC Line Valve, Refrigeration Valve 3/8 inch
Technical Specifications
- Port Size: 3/8 inch ID
- Material: Stainless Steel (SST) and Bronze
- Pressure Rating: 48 bar SWP
- Design: Triple diaphragm
- Standards: ISO/AS 5149.2, UL, CE
- Type: Capped line valve with solder access
- Dimensions (H x L x W): 80mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Large port for high flow
- Counter seat design suitable for low temperature applications
- Unique triple diaphragm construction
- Made from stainless steel (SST) and bronze
- Compatible with R-410A refrigerant up to 48 bar SWP
- Manufactured in accordance with ISO/AS 5149.2, UL and CE standards
Professional Installation Requirements
- Installation by a qualified HVAC technician or plumber is recommended to ensure proper soldering and system integrity.
Applications
- HVAC systems requiring reliable flow control
- Refrigeration systems compatible with R-410A
- Low temperature applications needing durable valve solutions
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Supports efficient HVAC and refrigeration system operation, reducing energy consumption
- Compatible with environmentally safer refrigerants like R-410A
Warranty Information
Warranty terms as per Aspen Pumps standard policy, typically 1-2 years against manufacturing defects.
Available Now
The Aspen Pumps Capped Line Valve - Solder with Access 3/8 ID is available for immediate purchase, ideal for HVAC and refrigeration system maintenance and installation.
