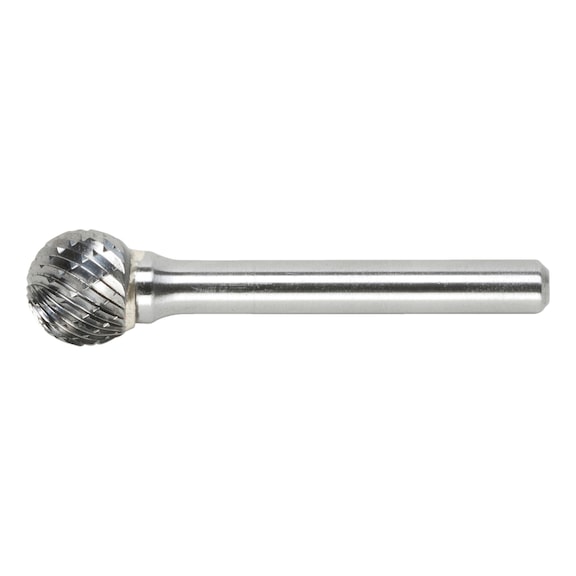

Carbide Milling Bit | Ball Nose Cutter | Staggered Tooth Design | 12mm Head Diameter | by Wurth
The Carbide Milling Bit is designed for precision machining, featuring a ball nose shape with a 12mm head diameter and 11mm cutting edge length. Ideal for professionals, it efficiently processes steel, stainless steel, and tough materials with hardness up to 60 HRC. Built from durable carbide, this milling bit ensures longevity and reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Milling Bit | Ball Nose Cutter | Staggered Tooth Design | 12mm Head Diameter | by Wurth
Brand: Wurth
SKU: 616003041
Alternatively Known As: Carbide Milling Bit, Ball Nose Milling Cutter, Staggered Tooth Milling Bit
Technical Specifications
- Form: Ball shape
- Head diameter x cutting edge length: 12 x 11 mm
- Length: 56 mm
- Shank diameter: 6 mm
- Material to be processed: Steel, Cast metal, Stainless steel, Special alloy, Hard and tough material, Non-ferrous metal
- Suitable for hardnesses up to: 60 HRC
- Quality: Wurth-Standard
- Teeth type: MX
- Cutting material: Carbide
- Surface: Plain
- Service life (points system): 2 of 4 points
- Cutting efficiency (point system): 2 of 4 points
- Surface quality/finish (points system): 2 of 4 points
- Versatility (points system): 3 of 4 points
- Guiding behaviour (points system): 2 of 4 points
- Shank style: Cylindrical
- Dimensions (H x L x W): 56mm x 56mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard milling bit with staggered tooth system
- Ball shape form with 12mm head diameter and 11mm cutting edge length
- Made of carbide cutting material for durability
- Suitable for materials with hardness up to 60 HRC
- Cylindrical shank style for secure fitting
Professional Installation Requirements
- Should be used by trained professionals with appropriate machining equipment and safety measures.
Applications
- Universal machining of steel with hardness less than 60 HRC
- Machining of cast iron, stainless steel, special alloys
- Suitable for hard and tough materials such as Hardox
- Machining of hard non-ferrous metals
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable carbide material reduces frequency of replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Standard Milling Bit is available now for immediate purchase. Ideal for professional machining applications requiring precision and durability.
