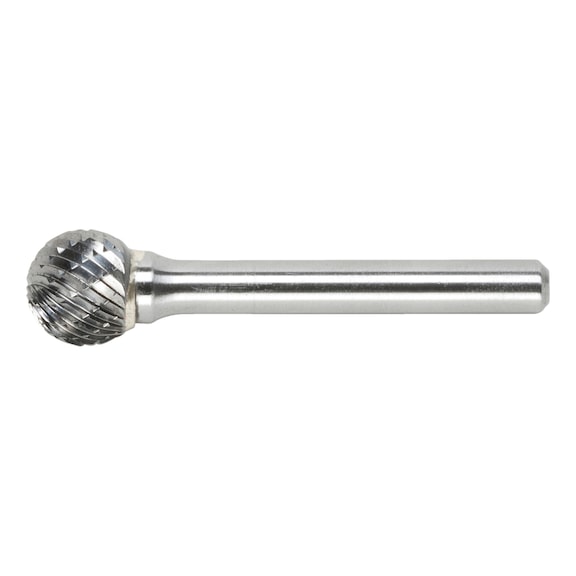

Carbide Milling Bit | Ball Nose Cutter | Staggered Tooth System | 6mm Shank | by Wurth
The Carbide Milling Bit is designed for precision machining, featuring a ball nose shape and a staggered tooth system for enhanced cutting efficiency. Ideal for professionals working with steel, stainless steel, and tough materials up to 60 HRC hardness, this durable tool ensures reliable performance and longevity in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Milling Bit | Ball Nose Cutter | Staggered Tooth System | 6mm Shank | by Wurth
Brand: Wurth
SKU: 616003010
Alternatively Known As: Carbide Milling Bit, Ball Nose Milling Cutter, Staggered Tooth Milling Bit
Technical Specifications
- Form: Ball shape
- Head diameter x cutting edge length: 6 x 4.7 mm
- Overall length: 50 mm
- Shank diameter: 6 mm
- Material to be processed: Steel, Cast metal, Stainless steel, Special alloy, Hard and tough material, Non-ferrous metal
- Suitable for hardnesses up to: 60 HRC
- Quality: Wurth-Standard
- Teeth type: MX (staggered tooth system)
- Cutting material: Carbide
- Surface: Plain
- Service life rating: 2 of 4 points
- Cutting efficiency rating: 2 of 4 points
- Surface quality/finish rating: 2 of 4 points
- Versatility rating: 3 of 4 points
- Guiding behaviour rating: 2 of 4 points
- Shank style: Cylindrical
- Dimensions (H x L x W): 50mm x 50mm x 6mm
- Weight: 0.1 kg
Key Features
- Standard milling bit with staggered tooth system
- Ball shape form with 6 mm shank diameter
- Cutting material made of carbide for durability
- Suitable for materials up to 60 HRC hardness
- Cylindrical shank style for secure fitting
Professional Installation Requirements
- Use with compatible milling machines operated by trained personnel; ensure proper mounting and safety procedures.
Applications
- Universal machining of steel with hardness less than 60 HRC
- Machining cast iron, stainless steel, special alloys
- Suitable for hard and tough materials such as Hardox
- Machining hard non-ferrous metals
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable carbide cutting material reduces tool replacement frequency
- Efficient cutting reduces energy consumption during machining
Warranty Information
Wurth standard warranty applies, covering manufacturing defects.
Available Now
The Wurth Standard Milling Bit is available now for immediate purchase. Ideal for professional machining applications requiring precision and durability.
