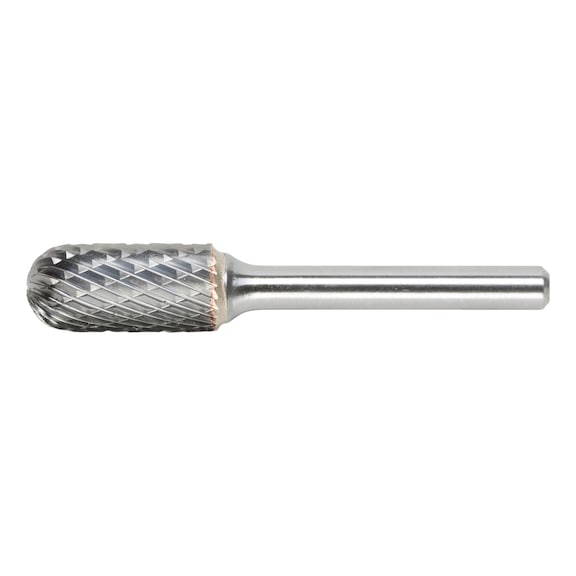

Carbide Milling Bit | MX Tooth Design | Cylindrical Shape | Suitable for 60 HRC | by Wurth
The Carbide Milling Bit is designed for universal machining of steel and other tough materials, featuring a robust MX tooth design and cylindrical shape. Ideal for professionals, it efficiently handles materials with hardness up to 60 HRC, ensuring durability and precision in metalworking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Milling Bit | MX Tooth Design | Cylindrical Shape | Suitable for 60 HRC | by Wurth
Brand: Wurth
SKU: 616002041
Alternatively Known As: Carbide Milling Bit, MX Tooth Milling Cutter, Cylindrical Milling Cutter
Technical Specifications
- Form: Cylindrical shape
- Head diameter x cutting edge length: 12 x 25 mm
- Overall length: 70 mm
- Shank diameter: 6 mm
- Material to be processed: Steel, Cast metal, Stainless steel, Special alloy, Hard and tough material, Non-ferrous metal
- Suitable for hardnesses up to: 60 HRC
- Quality: Wurth-Standard
- Teeth type: MX
- Cutting material: Carbide
- Surface: Plain
- Service life (points system): 2 of 4 points
- Cutting efficiency (points system): 2 of 4 points
- Surface quality/finish (points system): 2 of 4 points
- Versatility (points system): 3 of 4 points
- Guiding behaviour (points system): 2 of 4 points
- Shank style: Cylindrical
- Dimensions (H x L x W): 70mm x 70mm x 12mm
- Weight: 0.1 kg
Key Features
- Standard milling bit with staggered tooth system
- Cylindrical shape with cylindrical shank
- Carbide cutting material for durability
- Suitable for materials up to 60 HRC hardness
- Versatile with good guiding behaviour
Professional Installation Requirements
- Should be used by trained machining professionals with appropriate safety equipment.
Applications
- Universal machining of steel with hardness less than 60 HRC
- Machining cast iron, stainless steel, special alloys
- Suitable for hard and tough materials such as Hardox
- Machining hard non-ferrous metals
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable carbide material reduces frequency of replacement and waste
Warranty Information
Wurth standard warranty applies, covering manufacturing defects.
Available Now
The Wurth Standard Milling Bit is available now for immediate purchase. Ideal for professional machining applications in metalworking industries.
