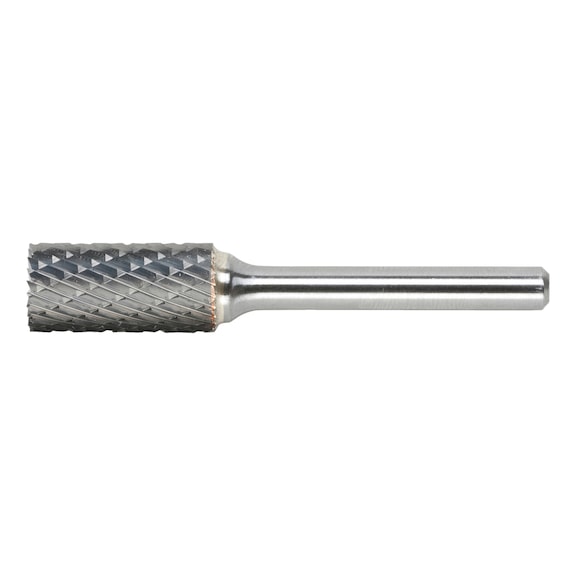

Carbide Milling Cutter | Staggered Tooth Design | 9.6mm Diameter | by Wurth
The Carbide Milling Cutter is designed for precision machining, featuring a staggered tooth system and a cylindrical shape with spur cut. Ideal for professionals working with steel, cast iron, and tough materials up to 60 HRC hardness, this durable tool ensures efficient cutting and versatility in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Milling Cutter | Staggered Tooth Design | 9.6mm Diameter | by Wurth
Brand: Wurth
SKU: 616001031
Alternatively Known As: Milling Cutter, Carbide Milling Bit, Staggered Tooth Milling Cutter
Technical Specifications
- Form: Cylindrical shape with spur cut
- Head diameter x cutting edge length: 9.6 x 19 mm
- Length: 64 mm
- Shank diameter: 6 mm
- Material to be processed: Steel, Cast metal, Stainless steel, Special alloy, Hard and tough material, Non-ferrous metal
- Suitable for hardnesses up to: 60 HRC
- Quality: Wurth-Standard
- Teeth type: MX
- Cutting material: Carbide
- Surface: Plain
- Service life (points system): 2 of 4 points
- Cutting efficiency (point system): 2 of 4 points
- Surface quality/finish (points system): 2 of 4 points
- Versatility (points system): 3 of 4 points
- Guiding behaviour (points system): 2 of 4 points
- Shank style: Cylindrical
- Dimensions (H x L x W): 64mm x 64mm x 6mm
- Weight: 0.1 kg
Key Features
- Standard milling bit with staggered tooth system
- Cylindrical shape with spur cut
- Carbide cutting material for durability
- Suitable for materials up to 60 HRC hardness
- Versatile with good guiding behaviour
Professional Installation Requirements
- Use by trained machining professionals with appropriate safety equipment is recommended.
Applications
- Universal machining of steel with hardness less than 60 HRC
- Machining cast iron, stainless steel, special alloys
- Suitable for hard and tough materials such as Hardox
- Machining hard non-ferrous metals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable carbide material reduces frequency of replacement and waste
Warranty Information
Standard Wurth warranty applies.
Available Now
The Wurth Standard Milling Bit is available now for immediate purchase. Ideal for professional machining applications requiring precision and durability.
