Trade Discount 20%

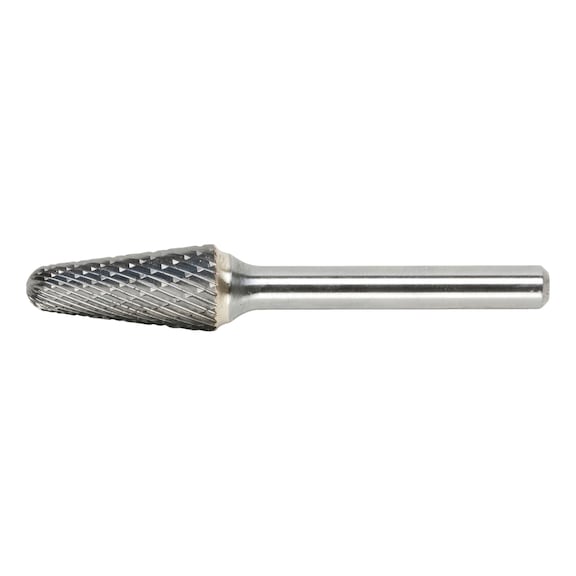

Carbide Milling Cutter | Staggered Tooth Design | Cone Form with Rounded End | by Wurth
The Carbide Milling Cutter is designed for universal machining of steel and other tough materials, featuring a staggered tooth system for enhanced cutting efficiency. With a cone form and rounded end, this milling bit is perfect for professionals working with materials up to 60 HRC, ensuring durability and precision in every cut.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Milling Cutter | Staggered Tooth Design | Cone Form with Rounded End | by Wurth
Brand: Wurth
SKU: 616009041
Alternatively Known As: Milling Cutter, Carbide Milling Bit, Staggered Tooth Milling Cutter, Universal Milling Bit
Technical Specifications
- Form: Cone with rounded end
- Head diameter x cutting edge length: 12 x 25 mm
- Total length: 70 mm
- Shank diameter: 6 mm
- Material to be processed: Steel, Cast metal, Stainless steel, Special alloy, Hard and tough material, Non-ferrous metal
- Suitable for hardnesses up to: 60 HRC
- Quality: Wurth-Standard
- Teeth type: MX
- Cutting material: Carbide
- Surface: Plain
- Service life (points system): 2 of 4 points
- Cutting efficiency (points system): 2 of 4 points
- Surface quality/finish (points system): 2 of 4 points
- Versatility (points system): 3 of 4 points
- Guiding behaviour (points system): 2 of 4 points
- Shank style: Cylindrical
- Dimensions (H x L x W): 70mm x 70mm x 6mm
- Weight: 0.1 kg
Key Features
- Standard milling bit with staggered tooth system
- Cone form with rounded end
- Carbide cutting material for durability
- Suitable for materials with hardness up to 60 HRC
- Cylindrical shank style for secure fitting
Professional Installation Requirements
- Should be used by trained professionals with appropriate machining equipment for safety and optimal performance.
Applications
- Universal machining of steel with hardness less than 60 HRC
- Machining of cast iron, stainless steel, special alloys
- Suitable for hard and tough materials such as Hardox
- Machining of hard non-ferrous metals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable carbide material reduces frequency of replacement and waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard Wurth warranty applies.
Available Now
The Wurth Standard Milling Bit is available for immediate purchase, ideal for professional machining applications in metalworking and manufacturing.
