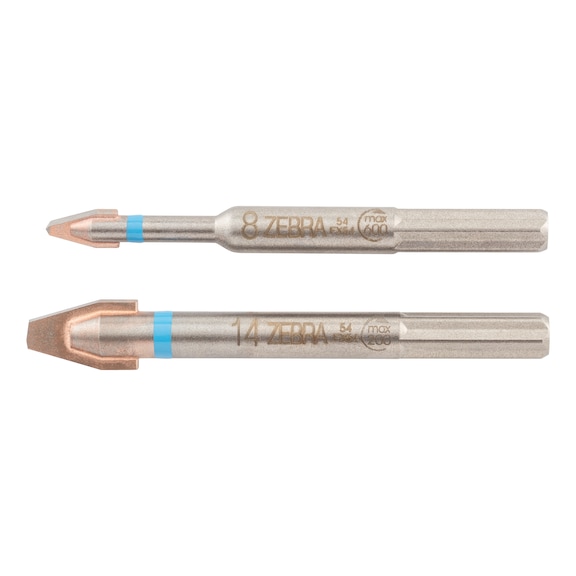

Carbide Tile Drill Bit | 14 mm Diameter | Chip-Free Drilling | Polygon Shank | by Wurth
The Carbide Tile Drill Bit is expertly crafted for precision drilling in hard materials like glass and porcelain. With a 14 mm diameter and specially designed carbide plate geometry, it ensures chip-free results. Ideal for professional tiling and construction projects, this drill bit is perfect for rotary drilling techniques, providing durability and accuracy without the need for cooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Tile Drill Bit | 14 mm Diameter | Chip-Free Drilling | Polygon Shank | by Wurth
Brand: Wurth
SKU: 641411411
Alternatively Known As: Carbide Tile Drill Bit, Hard Tile Drill Bit, Porcelain Drill Bit, Glass Drill Bit
Technical Specifications
- Diameter: 14 mm
- Length: 114 mm
- Shank diameter: 10 mm
- Tool holding device: Polygon
- Versatility rating: 1 of 4 points
- Service life rating: 3 of 4 points
- Drilling speed rating: 2 of 4 points
- Bore hole quality rating: 4 of 4 points
- Max speed: 200 rpm for 14 mm diameter
- Optimum contact pressure: 35-45 kg
- Not suitable for impact drilling; rotary drilling only
- Dimensions (H x L x W): 114mm x 114mm x 14mm
- Weight: 0.2 kg
Key Features
- Specially designed carbide plate geometry for precise, chip-free drilling
- New polygon shank prevents slippage and ensures optimal torque transmission
- Drill depth indicator for accurate drilling depth control
- No cooling required during drilling
- Not suitable for impact drilling; rotary drilling only
Professional Installation Requirements
- Recommended use by professionals or experienced users familiar with rotary drilling techniques to avoid breakage and ensure safety.
Applications
- Drilling in extremely hard stoneware tiles up to Mohs hardness 9
- Suitable for glass and porcelain drilling
- Ideal for precision rotary drilling in construction and tiling projects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable carbide construction extends tool life, reducing waste
- No cooling required reduces water usage and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth 641411411 carbide drill bit is available for immediate purchase, ideal for professional tiling and construction applications requiring precision drilling in hard materials.
