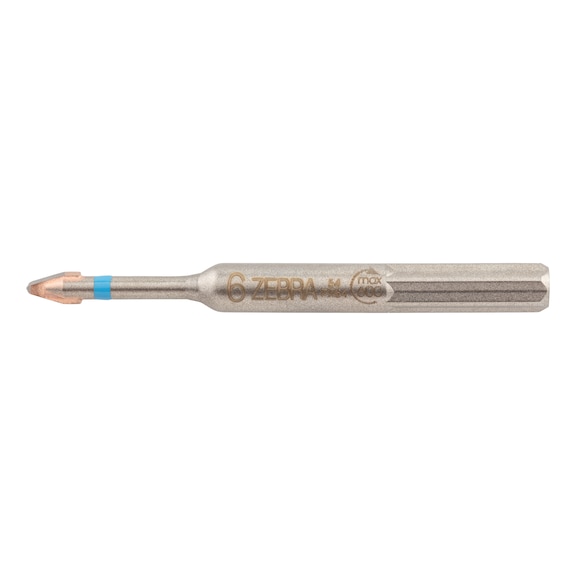

Carbide Tile Drill Bit | 6 mm Diameter | Chip-Free Drilling | Polygon Shank | by Wurth
The Carbide Tile Drill Bit is expertly crafted for precision drilling in hard materials like stoneware, glass, and porcelain. With a 6 mm diameter and a unique polygon shank design, it ensures optimal torque transmission and chip-free results. Ideal for professionals and experienced users, this drill bit is perfect for construction and tiling projects, providing reliable performance without the need for cooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Tile Drill Bit | 6 mm Diameter | Chip-Free Drilling | Polygon Shank | by Wurth
Brand: Wurth
SKU: 641416011
Alternatively Known As: Carbide Tile Drill Bit, Stoneware Drill Bit, Porcelain Drill Bit, Glass Drill Bit
Technical Specifications
- Diameter: 6 mm
- Length: 105 mm
- Shank diameter: 10 mm
- Tool holding device: Polygon
- Versatility rating: 1 of 4 points
- Service life rating: 3 of 4 points
- Drilling speed rating: 2 of 4 points
- Bore hole quality rating: 4 of 4 points
- Max speed: 800 rpm for 5 mm diameter, 600 rpm for 6 and 8 mm, 400 rpm for 10 and 12 mm, 200 rpm for 14 mm
- Optimum contact pressure: 35-45 kg
- Avoid tilting and swivelling movements during drilling
- Dimensions (H x L x W): 105mm x 105mm x 10mm
- Weight: 0.1 kg
Key Features
- Specially designed carbide plate geometry for precise, chip-free drilling
- New polygon shank prevents slippage and ensures optimal torque transmission
- Drill depth indicator for accurate drilling depth control
- No cooling required during drilling
- Not suitable for impact drilling; rotary drilling only
Professional Installation Requirements
- Recommended use by professionals or experienced users to ensure correct drilling technique and safety.
Applications
- Drilling in extremely hard stoneware tiles up to Mohs hardness 9
- Suitable for glass and porcelain drilling
- Ideal for precision rotary drilling in construction and tiling projects
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- No cooling required reduces water usage and environmental impact
- Durable carbide construction extends tool life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth 641416011 carbide drill bit is available now for immediate purchase. Ideal for professional and DIY applications involving hard stoneware, glass, and porcelain drilling.
