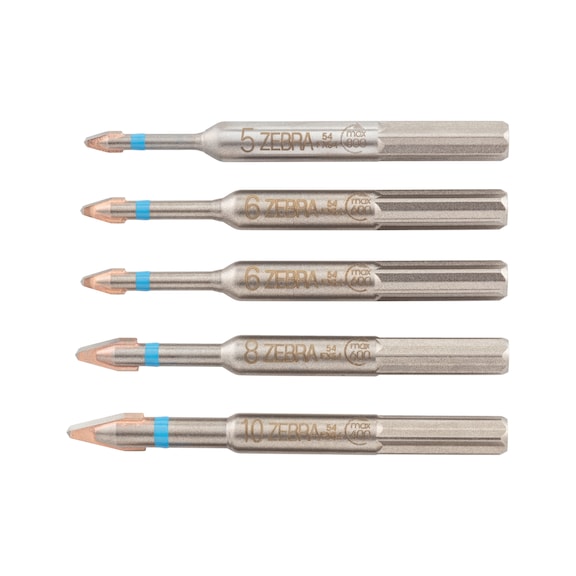

Carbide Tile Drill Bit Set | 5 PCS | Polygon Shank | Chip-Free Drilling | by Wurth
The Carbide Tile Drill Bit Set is designed for precision drilling in hard materials like stoneware, glass, and porcelain. With a polygon shank to prevent slippage and a drill depth indicator for monitoring wear, this set is perfect for professionals and experienced users. Enjoy chip-free drilling without the need for cooling, making it ideal for rotary drilling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Tile Drill Bit Set | 5 PCS | Polygon Shank | Chip-Free Drilling | by Wurth
Brand: Wurth
SKU: 641410005
Alternatively Known As: Carbide Tile Drill Bit Set, Porcelain Drill Bits, Stoneware Drill Bits, Glass Drill Bits, Rotary Drill Bits
Technical Specifications
- Number of pieces in set: 5 PCS
- Tool holding device: Polygon shank
- Versatility rating: 1 of 4 points
- Service life rating: 3 of 4 points
- Drilling speed rating: 2 of 4 points
- Bore hole quality rating: 4 of 4 points
- Max rotation speed: 5mm (800 rpm), 6-8mm (600 rpm), 10-12mm (400 rpm), 14mm (200 rpm)
- Not suitable for impact drilling, rotary drilling only
- Optimum contact pressure: 35-45 kg
- Dimensions (H x L x W): 20mm x 150mm x 150mm
- Weight: 0.2 kg
Key Features
- Specially designed carbide plate geometry for precise tapping and chip-free drilling
- New polygon shank prevents slippage and ensures optimal torque transmission
- Drill depth indicator for monitoring wear and service life
- No cooling required during drilling
- Recommended optimum contact pressure of 35-45 kg
- Max rotation speeds vary by diameter: 5mm (800 rpm), 6-8mm (600 rpm), 10-12mm (400 rpm), 14mm (200 rpm)
- Avoid tilting, swivelling, and high contact pressure when drill bit is not rotating to prevent breakage
- Pre-drilling required with 8mm bit when using 14mm diameter bit
Professional Installation Requirements
- Recommended use by professionals or experienced users to ensure correct drilling technique and tool longevity.
Applications
- Drilling in extremely hard stoneware tiles up to Mohs hardness 9
- Suitable for glass and porcelain drilling
- Rotary drilling applications (not suitable for impact drilling)
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable carbide construction extends tool life, reducing waste
- No cooling required reduces water usage and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Carbide Drill Bit Set is available for immediate purchase, ideal for professional and DIY drilling in hard tiles and porcelain.
