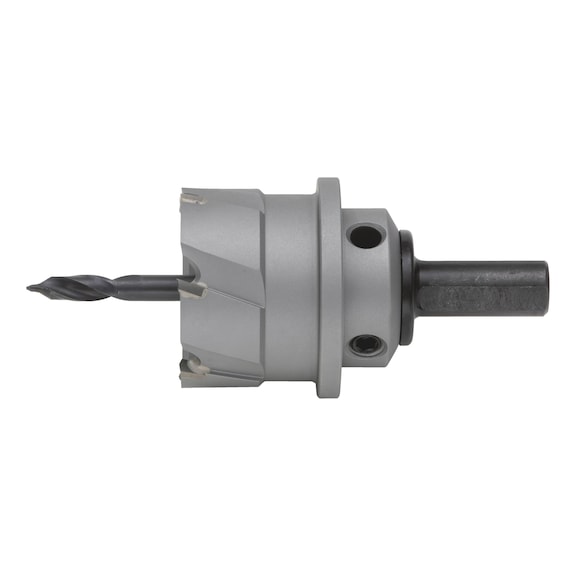

Carbide Tipped Hole Saw 19mm | CNC Cut & Optimized Center Drill | Durable Design | by Wurth
The 19mm Carbide Tipped Hole Saw is engineered for precision drilling, featuring CNC cut geometry to minimize cutting pressure and an optimized center drill for accurate centering. Ideal for professionals, this tool excels in creating clean drilling patterns in various materials, ensuring efficiency and reduced energy consumption during use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 19 mm
- Connection thread: PG 11
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Dimensions (H x L x W): 20mm x 50mm x 19mm
- Weight: 0.2 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering without drifting
- Precise, optimally embedded cemented carbide teeth via fully automatic soldering process
- Ejector spring automatically ejects the drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
- Recommended MK-2 drive arbor for saws of 64 mm diameter, usable from 32 mm diameter
- Requires sufficient cooling and lubrication during use
Professional Installation Requirements
- Recommended to be used by professionals or trained personnel familiar with machining and drilling tools for safety and optimal performance.
Applications
- Hand drill use for material thickness up to 6 mm and saw diameter up to 30 mm
- Drill press use for material thickness up to 20 mm and saw diameter greater than 30 mm
- Suitable for machining precise and clean drilling patterns with low tolerances
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for safe electrical tool use
Environmental Benefits
- Reduced drilling time lowers energy consumption
- Efficient cutting reduces material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Multi-Range Saw 19mm diameter is available for immediate purchase, ideal for precise machining and drilling applications.
