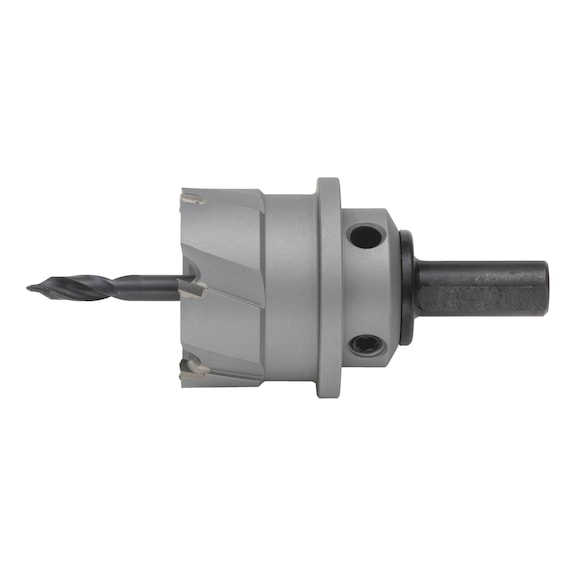

Carbide Tipped Hole Saw 32mm | CNC Cut & Optimized Center Drill | Durable Design | by Wurth
The Carbide Tipped Hole Saw 32mm is engineered for precision drilling in metalworking and construction. With a CNC cut design and optimized center drill, it ensures accurate centering and reduced cutting pressure. Ideal for hand drilling and drill press applications, this tool offers efficient chip removal and lower power consumption, making it perfect for professionals seeking high-quality results.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Tipped Hole Saw 32mm | CNC Cut & Optimized Center Drill | Durable Design | by Wurth
Brand: Wurth
SKU: 63012032
Alternatively Known As: Hole Saw, Carbide Tipped Hole Saw, Multi-Range Drill Saw, Precision Hole Cutter
Technical Specifications
- Diameter: 32 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Compatible with MK-2 drive arbor for saws 32 mm and above
- Recommended speeds must be observed
- Ensure sufficient cooling and lubrication during use
- Dimensions (H x L x W): 20mm x 75mm x 32mm
- Weight: 0.3 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering without drifting
- Precise seating of cemented carbide teeth via fully automatic soldering process
- Ejector spring automatically ejects the drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
- Reduced drilling force and over 50% reduction in drilling time with lower power consumption
Professional Installation Requirements
- Use by trained personnel recommended. Follow operating instructions and safety guidelines for optimal performance and safety.
Applications
- Hand drilling up to 6 mm material thickness with max. 30 mm saw diameter
- Drill press use up to max. 20 mm material thickness with saw diameter greater than 30 mm
- Suitable for machining precise and clean drilling patterns with low tolerances
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced power consumption during drilling lowers energy use
- Efficient cutting reduces material waste and extends tool life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Multi-Range Saw 32mm diameter is available now for immediate purchase. Ideal for precise machining and drilling applications in metalworking and construction.
