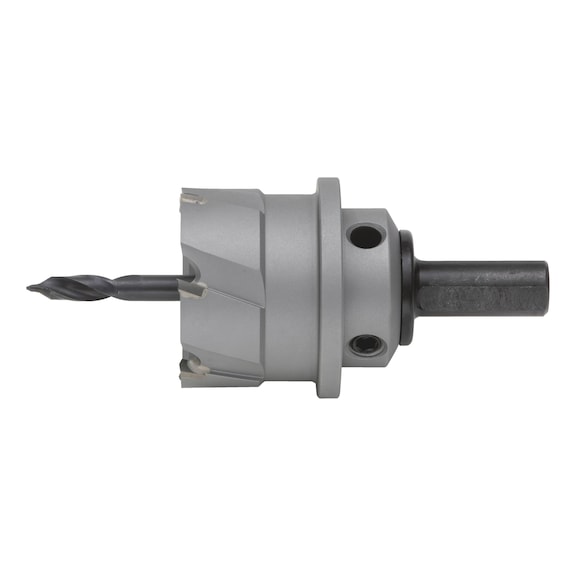

Carbide Tipped Hole Saw 35mm | CNC Cut & Optimized Center Drill | Efficient Chip Removal | by Wurth
The Carbide Tipped Hole Saw 35mm is designed for precision drilling with its CNC cut geometry and optimized center drill to prevent drifting. Ideal for professionals, it efficiently handles materials up to 20mm thick, ensuring clean and accurate cuts while reducing power consumption. Perfect for both hand drills and drill presses, this tool is a must-have for any machining application.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Tipped Hole Saw 35mm | CNC Cut & Optimized Center Drill | Efficient Chip Removal | by Wurth
Brand: Wurth
SKU: 63012035
Alternatively Known As: Hole Saw, Core Drill Bit, Carbide Tipped Saw, Multi-Range Hole Cutter
Technical Specifications
- Diameter: 35 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Dimensions (H x L x W): 20mm x 35mm x 19mm
- Weight: 0.3 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering without drifting
- Precise, optimally embedded cemented carbide teeth via fully automatic soldering process
- Ejector spring automatically ejects the drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
- Reduced drilling force and over 50% reduction in drilling time with lower power consumption
Professional Installation Requirements
- Use by trained personnel or professionals recommended to ensure safety and optimal performance.
Applications
- Hand drill use for material thickness up to 6 mm and saw diameter up to 30 mm
- Drill press use for material thickness up to 20 mm and saw diameter greater than 30 mm
- Suitable for machining precise and clean drilling patterns with low tolerances
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced power consumption during drilling lowers energy use
- Efficient cutting reduces material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Multi-Range Saw 35mm diameter is available for immediate purchase, ideal for precise machining and drilling applications.
