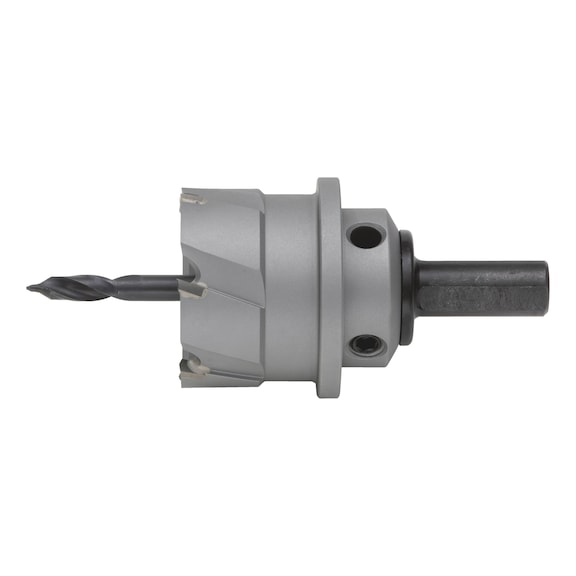

Carbide Tipped Hole Saw 55mm | CNC Cut Design | Ejector Spring | by Wurth
The Carbide Tipped Hole Saw 55mm is engineered for precise drilling in metal and other materials, featuring a CNC cut design that reduces cutting pressure and an ejector spring for automatic core removal. Ideal for industrial and construction applications, this durable tool ensures clean, accurate holes up to 20mm thick, making it perfect for both hand drills and drill presses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carbide Tipped Hole Saw 55mm | CNC Cut Design | Ejector Spring | by Wurth
Brand: Wurth
SKU: 63012055
Alternatively Known As: Hole Saw, Carbide Tipped Hole Saw, Multi-Range Drill Saw, Metal Cutting Saw
Technical Specifications
- Diameter: 55 mm
- Width across flats: 3/4 inch
- Cutting depth: 20 mm
- Drive type: Triangle
- Suitable for hand drill use up to 6 mm material thickness
- Suitable for drill press use up to 20 mm material thickness
- Recommended MK-2 drive arbor for saws 64 mm diameter and above
- Dimensions (H x L x W): 20mm x 55mm x 55mm
- Weight: 0.3 kg
Key Features
- Even CNC cut with cutting geometry aligned to reduce cutting pressure
- Offset, optimised centre drill (GS-protected system) for accurate centering
- Precise, optimally embedded cemented carbide teeth via automatic soldering
- Ejector spring automatically ejects drill core for materials up to 8 mm thick
- Solid basic body with offset chip grooves for efficient chip removal
- Separately tempered shank from 32 mm diameter for durability
Professional Installation Requirements
- Use by trained personnel recommended; ensure proper cooling and lubrication during operation.
Applications
- Machining: Precise drilling in metal and other materials
- Industrial: Use with hand drills and drill presses for clean, accurate holes
- Construction: Suitable for cutting through materials up to 20 mm thickness
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduced drilling time and power consumption lowers energy use
- Durable carbide teeth extend tool life, reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Multi-Range Saw 55mm is available for immediate purchase, ideal for machining and industrial drilling applications.
