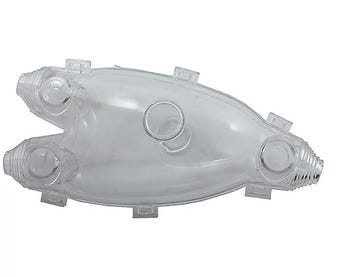

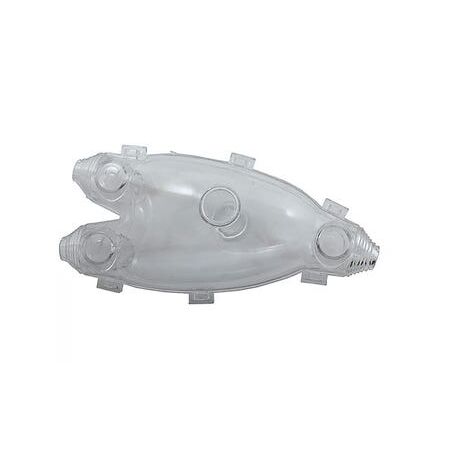

Cast Resin Branch Joint for Low Voltage Cables | Up to 1kV | Water-Tight & Durable by Cabac
The Cabac GTB Cast Resin Branch Joint is designed for low voltage cables up to 1kV, providing a compact, water-tight, and electrically insulating solution suitable for underground, submerged, and rail cable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GTB CAST RESIN BRANCH JOINT
Brand: Cabac
SKU: GTB1
Alternatively Known As: Cast Resin Cable Joint, Resin Branch Joint, Low Voltage Cable Joint, Polyurethane Cable Joint
Technical Specifications
- Suitable for cables rated up to 1kV
- Compatible with single or multi-core telephone, signal, and power cables
- Cast resin is unfilled polyurethane with soft elastic properties
- Resin cures in 1 hour before energising, fully cures in 24 hours
- Can be used submerged up to 1m depth
- Shelf life of 3 years at max 35°C
- Resin does not cure rapidly below 20°C; warming required in cold conditions
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.3 kg
Key Features
- Easy visual check before and during pouring of cast resin
- Pouring spouts to ensure void-free resin fill
- Snap lock and pre-shaped cut-offs for quick sealing of mould around the cable
- Complies with VDE standards
- Shelf life of 3 years at a maximum temperature of 35°C
- Soft elastic polyurethane resin equalizes mechanical stresses from thermal expansion
- Good adhesive strength to all cable materials
- Compact water tight design with high electrical insulating values
Professional Installation Requirements
- Installation should be performed by a qualified electrician or cable jointing professional to ensure proper curing and sealing.
Applications
- Single or multi-core telephone cables
- Signal cables
- Low voltage power cables up to 1kV
- Buried cables directly in the ground
- Cable trays
- Rail installations
- Water submerged cables up to 1m depth
- Cable repair applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin reduces need for frequent replacements, minimizing waste
- Water-tight design prevents environmental contamination from cable faults
- Long shelf life reduces material waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac GTB Cast Resin Branch Joint is available for immediate purchase, ideal for electrical and power connectivity applications requiring durable and water-tight cable joints.
