Cast Resin Branch Joint for Low Voltage Cables | Up to 1kV | Water-Tight & Durable by Cabac
The Cabac GTB Cast Resin Branch Joint is designed for low voltage cables up to 1kV, providing a compact, water-tight, and electrically insulating solution suitable for various installation environments including underground and submerged conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

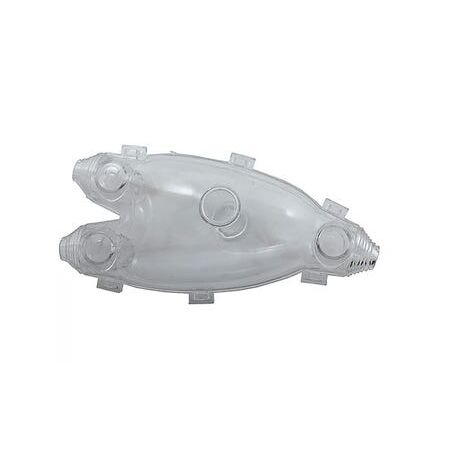

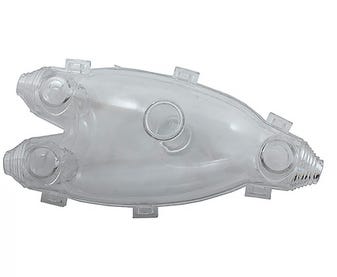

Product Name/Title: GTB CAST RESIN BRANCH JOINT
Brand: Cabac
SKU: GTB2
Alternatively Known As: Cast Resin Cable Joint, Resin Branch Joint, Low Voltage Cable Joint, Cable Resin Joint Kit
Technical Specifications
- Suitable for cables up to 1kV rating
- Compatible with single or multi-core telephone, signal, and power cables
- Cast resin made from special unfilled polyurethane with good adhesive strength
- Soft elastic properties to equalize mechanical stresses from thermal expansion
- Curing time: 1 hour before energising, 24 hours for full cure
- Can be used submerged up to 1m depth
- Shelf life: 3 years at max 35°C
- Not suitable for curing below 20°C without warming
- Dimensions (H x L x W): 80mm x 150mm x 120mm
- Weight: 0.3 kg
Key Features
- Easy visual check before and during pouring of cast resin
- Pouring spouts ensure void-free resin fill
- Snap lock and pre-shaped cut-offs allow quick sealing of mould around the cable
- Complies with VDE standards
- Shelf life of 3 years at a maximum temperature of 35°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or cable jointing professional to ensure proper curing and sealing for optimal performance and safety.
Applications
- Suitable for single or multi-core telephone, signal, and power cables up to 1kV rating
- Ideal for cables buried directly in the ground, on cable trays, rail installations
- Can be used for water submerged cables up to 1m depth
- Cable repair applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable polyurethane resin reduces need for frequent replacements
- Water-tight design prevents environmental contamination and cable damage
- Supports long cable life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac GTB Cast Resin Branch Joint is available for immediate purchase. Ideal for electrical contractors and maintenance teams working on low voltage cable installations and repairs.
