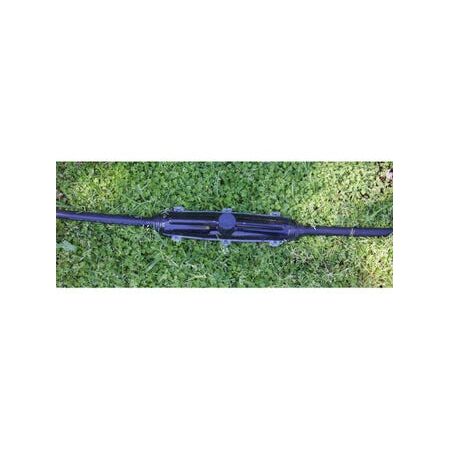

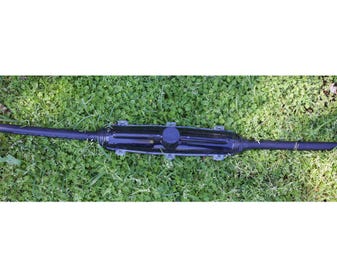

Cast Resin Joint 21-38mm OD | Up to 1kV Voltage | Water-Tight Design | Easy Visual Check by Cabac
Cabac Cast Resin Joint 21-38mm OD is a compact, water-tight cable joint ideal for single and multi-core telephone, signal, and low voltage power cables up to 1kV, suitable for underground, tray, rail, and submerged applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cast Resin Joint 21-38mm OD
Brand: Cabac
SKU: GTA4
Alternatively Known As: Cast Resin Cable Joint, Resin Cable Splice, Low Voltage Cable Joint, Polyurethane Cable Joint
Technical Specifications
- Suitable for cables with 21-38mm outer diameter
- Rated for up to 1kV voltage
- Material: Unfilled polyurethane cast resin
- Soft elastic properties to equalise mechanical stresses
- Curing time: 1 hour before energising, 24 hours full cure
- Can be used submerged up to 1m depth
- Shelf life: 3 years at max 35°C
- Complies with VDE standards
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Easy visual check before and during pouring of cast resin
- Pouring spouts ensure void-free resin fill
- Snap lock and pre-shaped cut-offs allow quick sealing of mould around the cable
- Compact water tight design with high electrical insulating values
- Shelf life of 3 years at a maximum temperature of 35°C
- Soft elastic polyurethane resin equalises mechanical stresses from thermal expansion
- Resin cures in one hour before energising and fully cures in 24 hours
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper curing and sealing for optimal performance and safety.
Applications
- Single or multi-core telephone cables
- Signal cables
- Low voltage power cables up to 1kV
- Buried cables directly in the ground
- Cables on trays and rail installations
- Water submerged cables up to 1m depth
- Cable repair applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable resin reduces need for frequent replacements
- Water-tight design prevents environmental contamination
- Long shelf life reduces waste
Warranty Information
Standard manufacturer warranty applies. Shelf life of resin is 3 years at max 35°C storage.
Available Now
The Cabac Cast Resin Joint 21-38mm OD is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring durable, water-tight cable joints.
