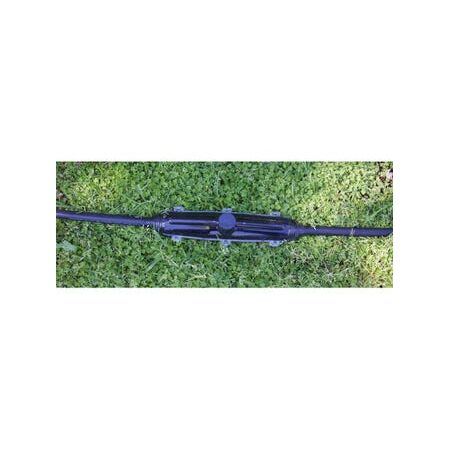

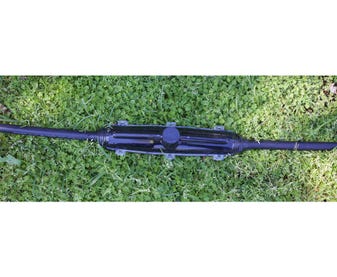

Cast Resin Joint 35-56mm OD | Up to 1kV Rating | Water-Tight Design | Easy Visual Check by Cabac
Cabac Cast Resin Joint 35-56mm OD is a compact, water-tight cable joint ideal for single and multi-core telephone, signal, and low voltage power cables up to 1kV, suitable for underground, tray, rail, and submerged applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cast Resin Joint 35-56mm OD
Brand: Cabac
SKU: GTA6
Alternatively Known As: Cast Resin Cable Joint, Resin Cable Splice, Low Voltage Cable Joint, Polyurethane Cable Joint
Technical Specifications
- Suitable for cables with 35-56mm outer diameter
- Rated for cables up to 1kV
- Material: Unfilled polyurethane cast resin
- Resin properties: Soft elastic, good adhesive strength to all cable materials
- Curing time: 1 hour before energising, 24 hours to fully cure
- Temperature storage: Up to 35°C for 3 years shelf life
- Water submersion: Up to 1 meter depth
- Resin does not cure rapidly below 20°C ambient temperature
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Easy visual check before and during pouring of cast resin
- Pouring spouts to ensure void-free resin fill
- Snap lock and pre-shaped cut-offs for quick sealing of mould around the cable
- Complies with VDE standards
- Shelf life of 3 years at a maximum temperature of 35°C
- Soft elastic polyurethane resin equalizes mechanical stresses from thermal expansion
- Resin cures in one hour before energising and fully cures in 24 hours
Professional Installation Requirements
- Professional installation by a qualified electrician or cable jointing technician is recommended to ensure proper curing and sealing of the resin joint.
Applications
- Single or multi-core telephone cables up to 1kV
- Signal cables up to 1kV
- Low voltage power cables up to 1kV
- Buried cables directly in the ground
- Cables on cable trays
- Rail installations
- Water submerged cables up to 1m depth
- Cable repair applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting resin reduces need for frequent replacements
- Water-tight design prevents environmental contamination
- Supports cable repair, reducing cable waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Cast Resin Joint 35-56mm OD is available for immediate purchase. Ideal for low voltage cable jointing in telecommunications, power, and signal applications.
