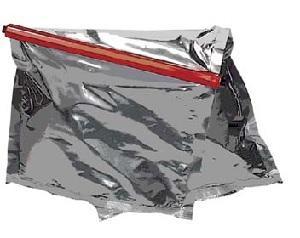

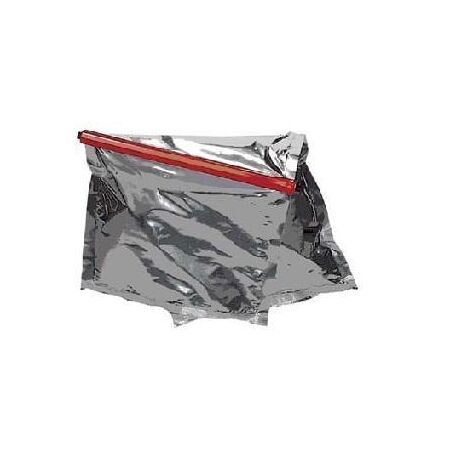

Casting Resin EG286 Non-Removable | 286ml Pack | Halogen-Free & Non-Toxic | Fast Hardening | by Wattmaster
Casting Resin EG286 Non-Removable is a two-component polyurethane (PUR) resin designed for mechanical protection and water-sealing on medium voltage cables. Ideal for electrical and telecommunications applications, it features excellent hydrolytic resistance and non-toxic emissions during mixing and casting, ensuring safer handling. This fast-hardening resin is perfect for professional installation by qualified technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Casting Resin EG286 Non-Removable | 286ml Pack | Halogen-Free & Non-Toxic | Fast Hardening | by Wattmaster
Brand: Wattmaster
SKU: ALC124EG286
Alternatively Known As: Cable Jointing Resin, Cast Resin Cartridge, PUR Casting Resin, Cable Sealing Resin
Technical Specifications
- Type: EG286 Resin Pack 286ml
- Material: Two-component polyurethane (PUR) cast-resin
- Voltage rating: Suitable for cables up to 1kV
- Application: Mechanical protection and water-sealing on medium voltage cables
- Hydrolytic resistance: Excellent
- Hardening: Fast with low temperature
- Emission: Non-toxic during mixing and casting
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Halogen-free, unfilled two-component polyurethane (PUR) cast-resin
- Non-toxic emission during mixing and casting
- Excellent hydrolytic resistance
- No cracks during electrical and mechanical stress
- Low hardening temperature and excellent flow properties
- Fast hardening and good adherence to all cable materials
- Packed in practical and easy-to-use two-chamber mixing bags
Professional Installation Requirements
- Professional installation by qualified cable jointing technicians is recommended to ensure proper mixing, application, and curing.
Applications
- Low voltage plastic or paper insulated cables rated up to 1kV
- Telecommunications and signal plastic or paper insulated cables
- Mechanical protection and water-sealing on medium voltage cables
- Cable jointing and sealing applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free formulation reduces environmental impact and toxic emissions
- Non-toxic during mixing and casting, ensuring safer handling and reduced environmental hazards
Warranty Information
Warranty information available upon request from the manufacturer.
Available Now
Wattmaster Casting Resin EG286 Non-Removable 286ml Pack is available for immediate purchase, ideal for cable jointing and sealing applications in electrical and telecommunications installations.
