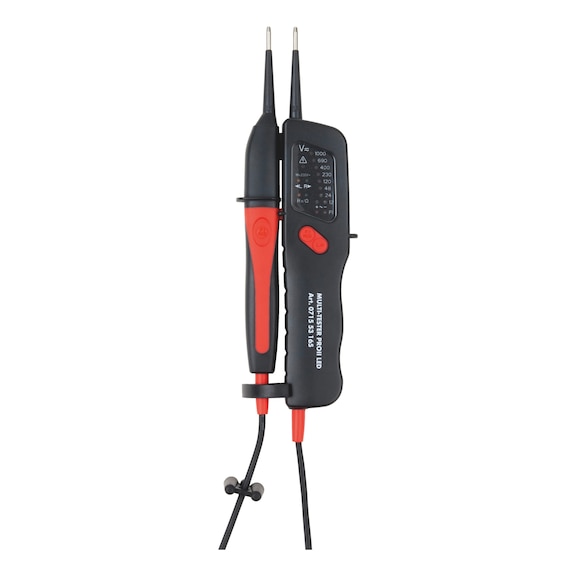

CAT IV Voltage Tester 71553165 | 6-1000V AC & 6-1400V DC | IP65 Rated | by Wurth
The CAT IV Voltage Tester 71553165 is designed for electrical professionals, offering a voltage range of 6-1000V AC and 6-1400V DC. With features like visual and vibrating warnings, it ensures maximum safety during testing. Ideal for electrical installations, servicing, and testing of hybrid vehicles and photovoltaic systems, this tester is built to meet high safety standards and provide reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT IV Voltage Tester 71553165 | 6-1000V AC & 6-1400V DC | IP65 Rated | by Wurth
Brand: Wurth
SKU: 71553165
Alternatively Known As: Voltage Tester, Electrical Voltage Tester, CAT IV Voltage Tester, Overvoltage Tester, Electrical Safety Tester
Technical Specifications
- Length: 300 mm
- Display: Optical, LEDs
- Voltage range AC: 6-1000 V
- Voltage range DC: 6-1400 V
- Frequency range: 0-1000 Hz
- Continuity testing resistance: 0-200 kOhm
- Minimum voltage for phase testing: 100 V AC
- Switchable load: 30 mA at 230 V AC
- Diode testing: Yes
- Polarity testing: Yes (+/- LED)
- PELV display: Visual, Vibrating
- IP protection class: IP65
- Overvoltage protection category: CAT IV/1000 V
- Battery type: 1.5 V Micro AAA, 2 pieces
- Dimensions (H x L x W): 20mm x 300mm x 75mm
- Weight: 0.3 kg
Key Features
- Test equipment with maximum safety level including visual and vibrating warnings with batteries
- ELV LED indicates presence of voltage without batteries
- Displays voltages from approx. 45 V AC and 110 V DC
- FI/RCD test with two keys for improved hold in safety and CEE sockets
- Screwable 4 mm test probe adapter suitable for narrow test openings
- Energy-saving design
Professional Installation Requirements
- Professional installation and testing by qualified electricians is recommended to ensure safety and compliance with electrical standards.
Applications
- Electrical installation and servicing work
- Testing hybrid and electric vehicles
- Testing photovoltaic systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-saving design reduces battery consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Overvoltage Category CAT IV Voltage Tester 71553165 is available now for immediate purchase. Ideal for electrical professionals working in installation, servicing, and testing of advanced electrical systems.
