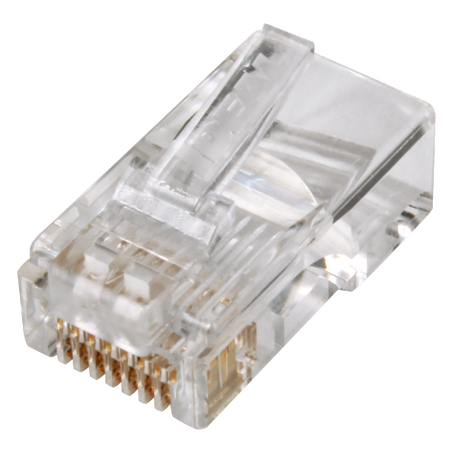

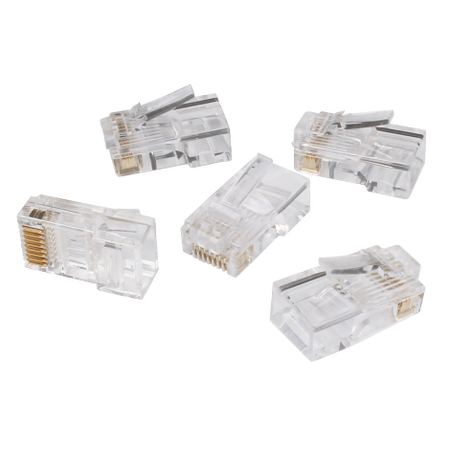

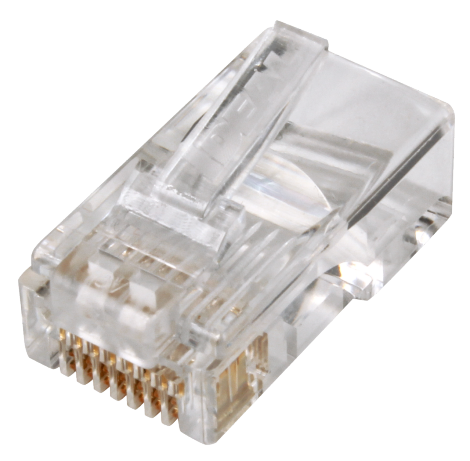

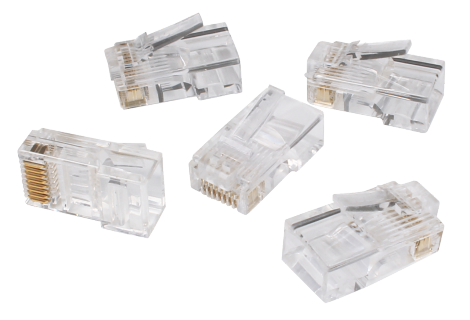

CAT5e Feed-Thru RJ45 Connectors | Jar of 100 | 8P8C | Gold Plated | Pack of 100 by Ideal Electrical
CAT5e Feed-Thru RJ45 connectors in a jar of 100, designed for quick verification of conductor order before crimping. Ideal for data communication networks and PoE applications, these connectors minimize untwisting of pairs and feature gold plating for long-term reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT5e Feed-Thru RJ45 Connectors (100/JR)
Brand: Ideal Electrical
SKU: IDL85-372J
Alternatively Known As: CAT5e RJ45 Connectors, Feed-Thru Modular Plugs, RJ45 Crimp Connectors, Ethernet Cable Connectors
Technical Specifications
- Data Cable Type: CAT5e
- Termination Method: Crimp
- Quantity: Jar of 100
- Positions/Contacts: 8P8C
- Wire Type: Solid and Stranded
- Impedance: 100 Ohms
- Feed-Thru: Yes
- Compatible with IEEE 802.3af/at/bt PoE standards
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features

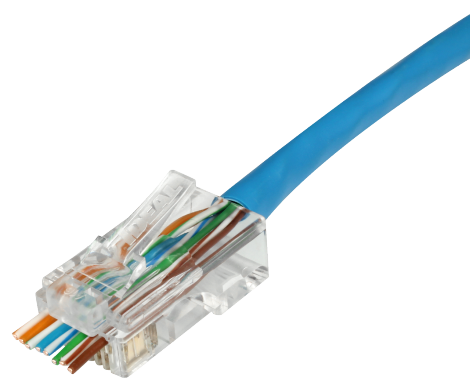

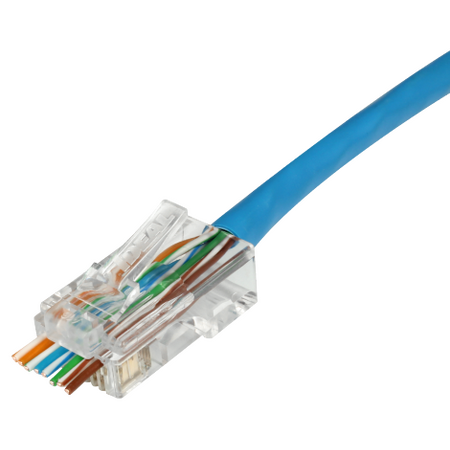

- Feed-Thru design enables quick verification of conductor order before crimping
- Minimizes untwisting of pairs inside the connector body to 1/2 inch
- 50 micro-inch gold plating on contact mating area for long-term reliability
- Compatible with solid or stranded 23-24 AWG insulated copper conductors
- Supports cable jacket outer diameter up to 0.270 inches
- UL Listed and IEEE 802.3af/at/bt compliant
Professional Installation Requirements
- Professional installation recommended using the IDEAL® FT-45® Crimp Tool (30-495) for optimal performance and reliability.
Applications
- Data communication networks
- PoE, PoE+ and PoE++ compatible devices
- CAT5e cable assembly and termination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Feed-Thru design reduces material waste by enabling accurate cable assembly on the first attempt
Warranty Information
Limited 1 Year warranty.
Available Now
Ideal Electrical CAT5e Feed-Thru RJ45 Connectors (100/JR) are available now for immediate purchase. Ideal for professional data communication and network installations.
