CAT5e Feed-Thru RJ45 Connectors | 8P8C | Gold Plated | Pack of 50 by Ideal Electrical
CAT5e Feed-Thru RJ45 connectors in a 50 pack, designed for quick verification of conductor order before crimping. Ideal for data communication networks and PoE installations, these connectors feature 50 micro-inch gold plating for long-term reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

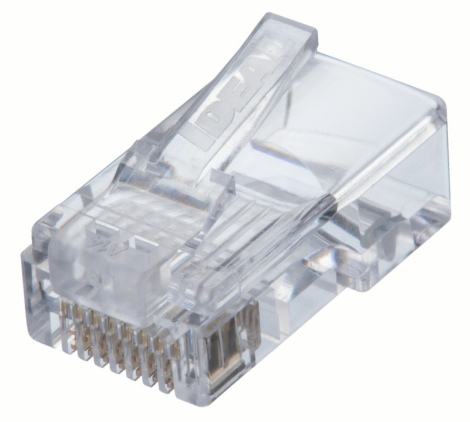

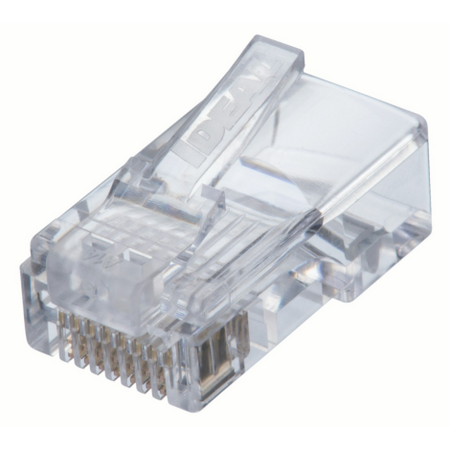

Product Name/Title: CAT5e Feed-Thru RJ45 Connectors (50/PK)
Brand: Ideal Electrical
SKU: IDL85-371
Alternatively Known As: CAT5e RJ45 Connectors, Feed-Thru Modular Plugs, RJ45 Crimp Connectors, Ethernet Cable Connectors
Technical Specifications
- Data Cable Type: CAT5e
- Termination Method: Crimp
- Quantity: Pack of 50
- Positions/Contacts: 8P8C
- Wire Type: Solid and Stranded
- Impedance: 100 ohms
- Feed-Thru: Yes
- Contact Plating: 50 micro-inch gold
- Max Cable Jacket Diameter: 0.270 inches
- Compatible with IEEE 802.3af/at/bt PoE standards
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features

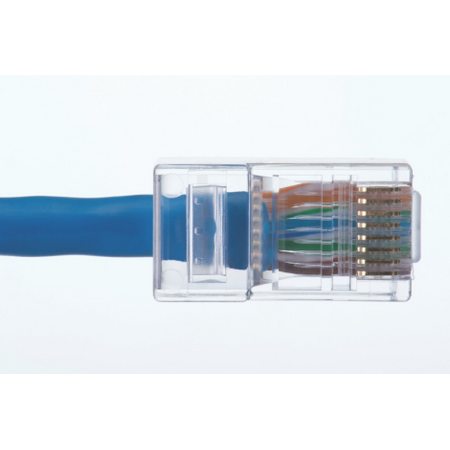

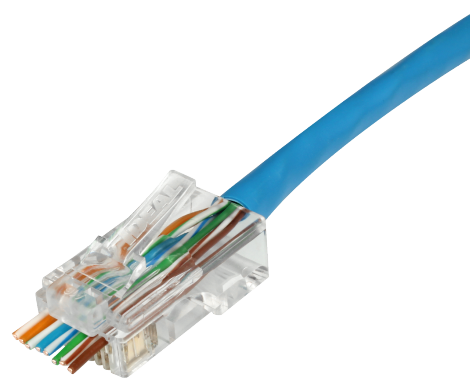

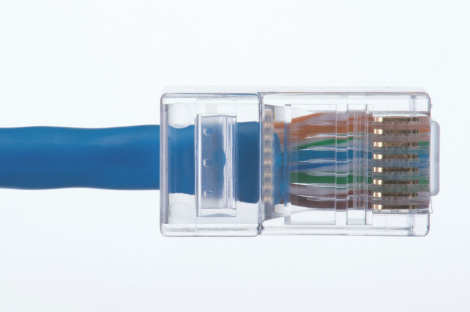

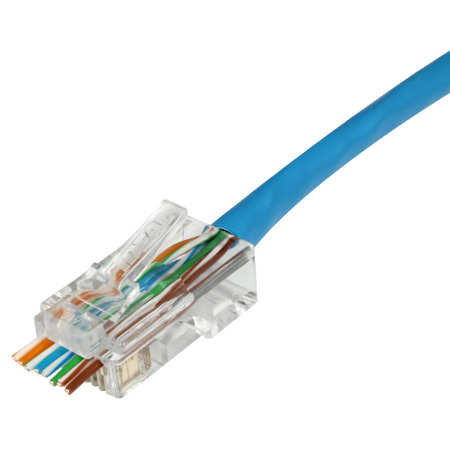

- Feed-Thru design enables quick verification of conductor order before crimping
- Compatible with IDEAL® FT-45® Crimp Tool for precision cutting
- Minimizes untwisting of cable pairs inside connector to 1/2 inch
- 50 micro-inch gold plating on contact area for long-term reliability
- Supports solid or stranded 23-24 AWG insulated copper conductors
- Maximum cable jacket outer diameter of 0.270 inches
- UL Listed and compatible with IEEE 802.3af/at/bt PoE standards
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper cable termination and network performance.
Applications
- Data communication networks
- PoE, PoE+ and PoE++ compatible installations
- CAT5e cable assembly and termination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Feed-Thru design reduces material waste by enabling accurate cable assembly
- Durable gold plating extends connector lifespan, reducing replacement frequency
Warranty Information
Limited 1 Year warranty.
Available Now
Ideal Electrical CAT5e Feed-Thru RJ45 Connectors (50/PK) are available now for immediate purchase. Ideal for data communication and PoE network installations.
