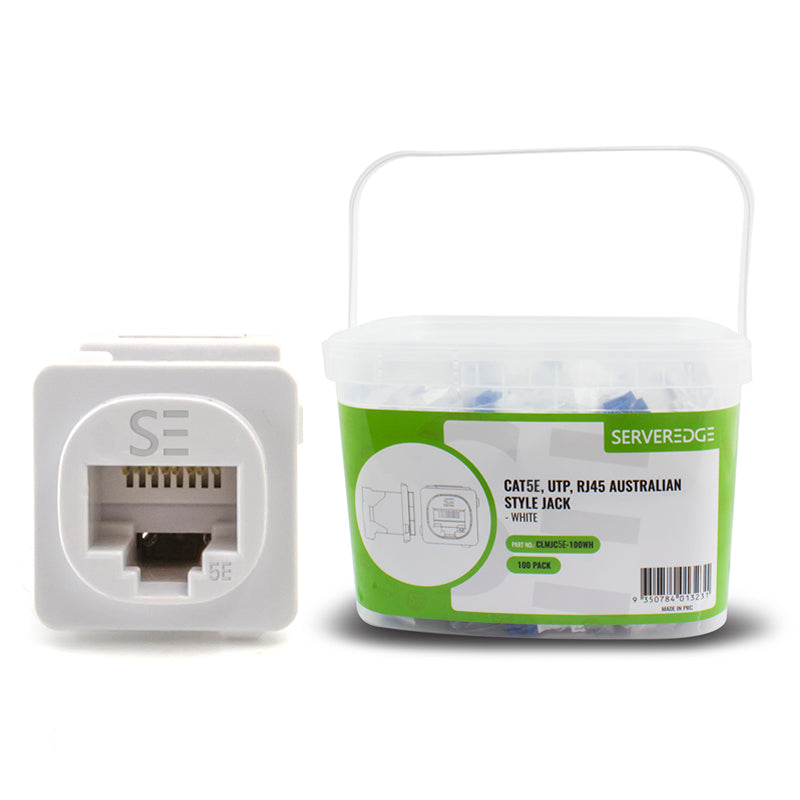

Cat5e UTP RJ45 Australian Style Jack | White | Pack of 100 | UL 94V-O Rated | by SERVEREDGE
Cat5e UTP RJ45 Australian Style Jack in white is perfect for networking installations, featuring flexible locking tabs and UL 94V-O flame retardant material. Ideal for both residential and commercial applications, this pack of 100 ensures reliable connectivity for structured cabling systems, meeting all necessary compliance standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cat5e UTP RJ45 Australian Style Jack | White | Pack of 100 | UL 94V-O Rated | by SERVEREDGE
Brand: SERVEREDGE
SKU: CLMJC5E-100WH
Alternatively Known As: Cat5e RJ45 Jack, Cat5e UTP Connector, RJ45 Network Jack, Australian Style RJ45 Jack
Technical Specifications
- Compliance: AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002, ANSI/TIA/EIA-568A/B
- Conductor Compatibility: Solid 22-24 AWG
- Colour Coding: Universal for 568A and 568B
- Material Rating: UL 94V-O flame retardant
- Locking Mechanism: Flexible locking tabs
- Technology: Lead frame to prevent PCB failures
- Dimensions (H x L x W): 25mm x 30mm x 20mm
- Weight: 0.5 kg
Key Features
- Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 and ANSI/TIA/EIA-568A/B Series Connecting Hardware Standards
- Flexible locking tabs for secure connections
- UL 94V-O rated for flame retardance
- Accepts solid 22-24 AWG diameter conductors
- Universal colour-coding for 568A and 568B wiring standards
- Lead frame technology eliminates the possibility of PCB failures
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure compliance with cabling standards and optimal performance.
Applications
- Networking installations in residential and commercial buildings
- Data communication and telecommunication systems
- Structured cabling systems requiring Cat5e connectivity
Standards & Compliance
- AS/NZS 3080:2003 - Telecommunications Installations - Generic cabling for customer premises
Environmental Benefits
- Compliant with international standards ensuring reduced electronic waste through reliable performance
- UL 94V-O flame retardant rating enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SERVEREDGE warranty policy for details.
Available Now
The SERVEREDGE Cat5e UTP RJ45 Australian Style Jack in white, pack of 100, is available now for immediate purchase. Ideal for professional networking and structured cabling installations.
