Trade Discount 17%

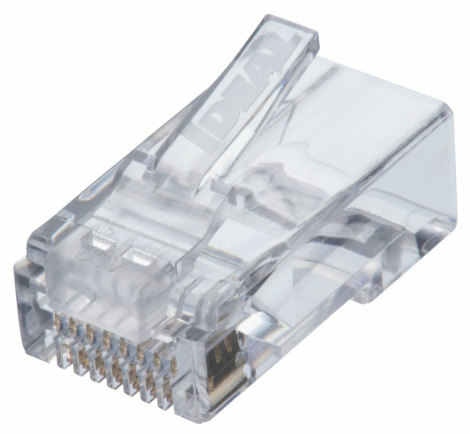

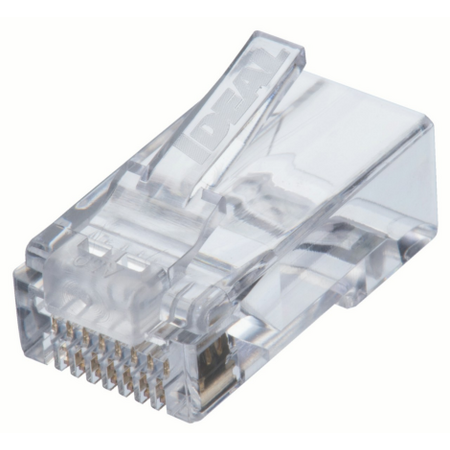

CAT6 Feed-Thru RJ45 Connectors | 8P8C | 50 Micro-Inch Gold Plating | Pack of 100 by Ideal Electrical
CAT6 Feed-Thru RJ45 connectors in a 100 pack, featuring 8P8C contacts and durable gold plating—ideal for data communication networks. Built for network installers and IT professionals, these connectors minimize untwisting of cable pairs for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6 Feed-Thru RJ45 Connectors (100/BG)
Brand: Ideal Electrical
SKU: IDL85-377
Alternatively Known As: CAT6 RJ45 Connectors, Feed-Thru Modular Plugs, CAT6 Network Connectors, RJ45 Crimp Connectors
Technical Specifications
- Data Cable Type: CAT6
- Termination Method: Crimp
- Quantity: Bag of 100
- Positions/Contacts: 8P8C
- Wire Type: Solid and Stranded
- Impedance: 100 Ohms
- Feed-Thru: Yes
- Contact Plating: 50 micro-inch gold
- Max Cable Jacket Diameter: 0.290 inches
- Compatible with IEEE 802.3af/at/bt PoE standards
- Dimensions (H x L x W): 8mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features

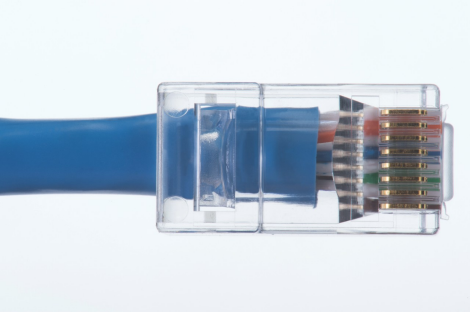

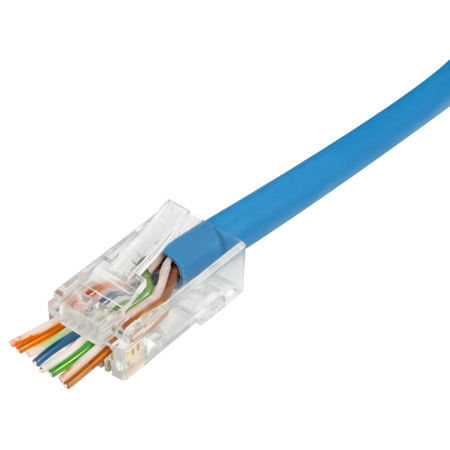

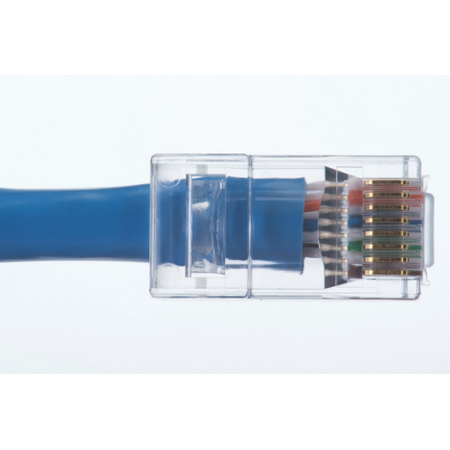

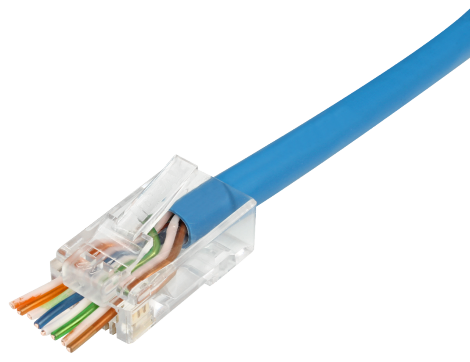

- Feed-Thru design enables quick verification of conductor order before crimping
- Compatible with IDEAL® FT-45® Crimp Tool for precision cutting
- Minimizes untwisting of cable pairs inside connector to 1/4 inch
- 50 micro-inch gold plating on contact area for long-term reliability
- Supports solid or stranded 23-24 AWG insulated copper conductors
- Max cable jacket outer diameter of 0.290 inches
- UL Listed and IEEE 802.3af/at/bt compliant for PoE applications
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper crimping and network performance.
Applications
- Data communication networks
- PoE, PoE+ and PoE++ compatible devices
- CAT6 cable assembly for residential and commercial networking
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Feed-Thru design reduces material waste by enabling accurate cable assembly on first attempt
- Durable gold plating extends connector lifespan, reducing replacement frequency
Warranty Information
Limited 1 Year warranty.
Available Now
Ideal Electrical CAT6 Feed-Thru RJ45 Connectors (100/BG) are available for immediate purchase, ideal for network installers and IT professionals assembling CAT6 data cables.
