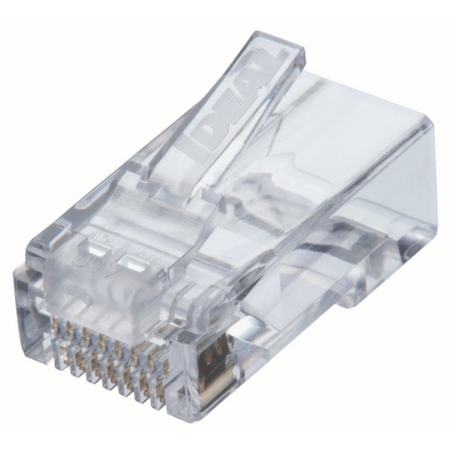

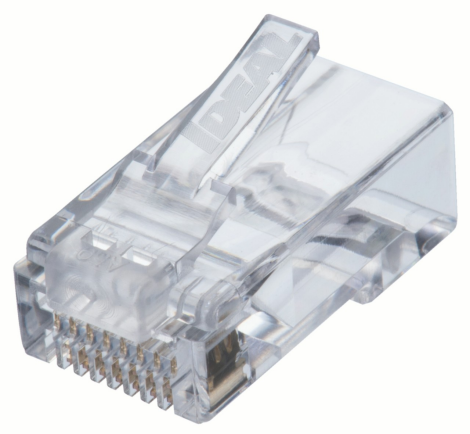

CAT6 Feed-Thru RJ45 Connectors | 8P8C Compatibility | Gold Plated | Pack of 50 by Ideal Electrical
CAT6 Feed-Thru RJ45 connectors in a 50 pack, featuring 8P8C contacts and gold plating for enhanced reliability. Ideal for data communication networks and PoE installations, these connectors minimize cable untwisting and ensure quick verification of conductor order before crimping.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CAT6 Feed-Thru RJ45 Connectors (50/PK)
Brand: Ideal Electrical
SKU: IDL85-376
Alternatively Known As: CAT6 RJ45 Connectors, Feed-Thru Modular Plugs, CAT6 Network Connectors, RJ45 Crimp Connectors
Technical Specifications
- Data Cable Type: CAT6
- Termination Method: Crimp
- Quantity: Pack of 50
- Positions/Contacts: 8P8C
- Wire Type: Solid and Stranded
- Impedance: 100 Ohms
- Feed-Thru: Yes
- Compatible with IEEE 802.3af/at/bt PoE standards
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features

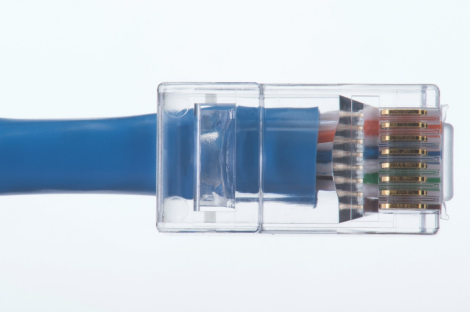

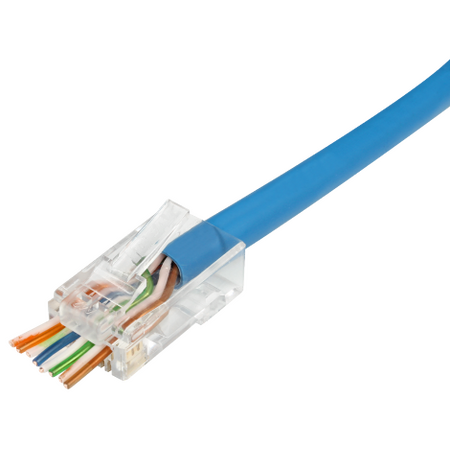

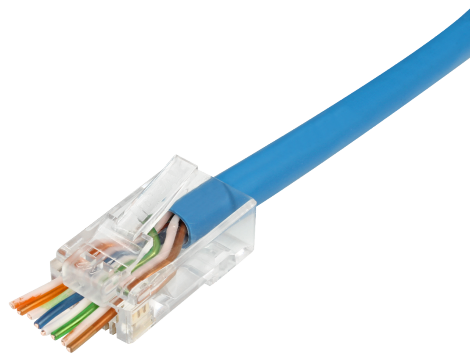

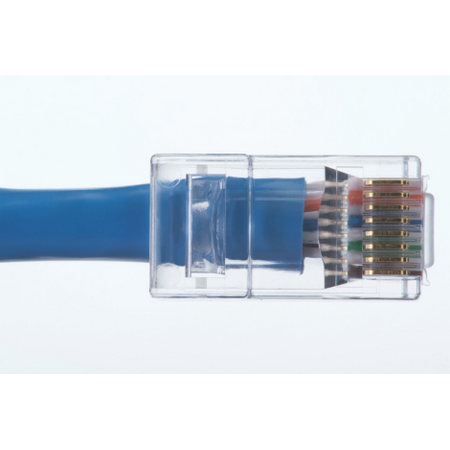

- Feed-Thru design enables quick verification of conductor order before crimping
- Compatible with IDEAL® FT-45® Crimp Tool for precision cutting
- Minimizes untwisting of cable pairs inside the connector to 1/4 inch
- 50 micro-inch gold plating on contact mating area for long-term reliability
- Supports solid or stranded 23-24 AWG insulated copper conductors
- Max cable jacket outer diameter of 0.290 inches
- UL Listed and compatible with IEEE 802.3af/at/bt standards
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper cable termination and network performance.
Applications
- Data communication networks
- PoE, PoE+ and PoE++ compatible installations
- CAT6 cable assembly for residential and commercial networking
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Feed-Thru design reduces material waste by enabling accurate cable assembly on the first attempt
- Durable gold plating extends connector life, reducing replacement frequency
Warranty Information
Limited 1 Year warranty.
Available Now
Ideal Electrical CAT6 Feed-Thru RJ45 Connectors (50/PK) are available now for immediate purchase. Ideal for professional and DIY network cable assembly and installation.
