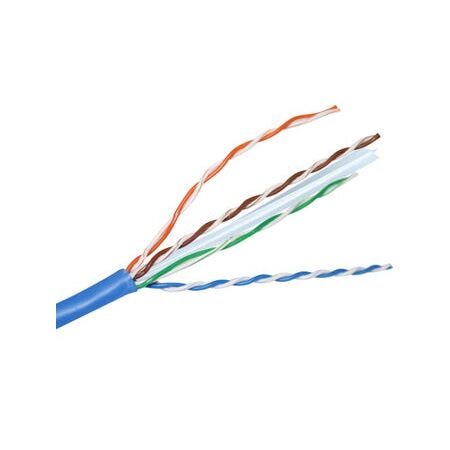

Cat6 UTP Data Cable Solid 23AWG Blue 305m Box Cabac
Category 6 U-UTP Ethernet cable with a 305M length and vibrant blue color—ideal for high-speed networking. Built for home and office use, it ensures reliable data tr
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Category 6 cable supporting Cat6 Link and Channel performance standards
- Compliant with AS/NZS 11801.1 and ANSI/TIA 568.2-D
- 23 AWG bare copper solid conductors
- Unshielded Twisted Pair (U-UTP)
- Central spline separator to reduce crosstalk
- Supports Gigabit Ethernet
- 305 meters length in easy feed box
- Dimensions (H x L x W): 200mm x 300mm x 200mm
- Weight: 3.5 kg
Key Features
- Category 6 performance with outstanding headroom
- Solid 23 AWG bare copper conductors
- Central spline separator for reduced crosstalk
- Unshielded Twisted Pair (U-UTP) design
- Easy feed box for neat and efficient installation
Professional Installation Requirements
- Professional installation recommended to ensure compliance with network standards and optimal performance.
Applications
- Permanent network installations from patch panel to wall outlet jack
- Gigabit Ethernet networking
- Data communication in residential and commercial buildings
Standards & Compliance
- Complies with AS/NZS 11801.1 for structured cabling systems
Environmental Benefits
- Supports energy-efficient network performance
- Durable solid conductor design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac Ethernet Cable Category 6 U-UTP Blue 305M is available now for immediate purchase. Ideal for permanent network installations in residential and commercial environments.
FAQ
Q: What makes the Cabac Cat6 UTP Data Cable Solid 23AWG Blue 305m suitable for permanent network installations?
A: This cable uses solid 23AWG bare copper conductors with a central spline separator for reduced crosstalk and supports Gigabit Ethernet with Category 6 Link and Channel performance with outstanding headroom. The easy feed box format is designed for neat and efficient installation from patch panel to wall outlet jack in residential and commercial buildings.
Q: What compliance standards does the MSSCABLE6U Cat6 cable meet?
A: This cable is compliant with AS/NZS 11801 and ANSI/TIA 568.2-D for structured cabling systems, and complies with AS/NZS 11801 for structured cabling systems. Professional installation is recommended to ensure compliance with network standards and optimal performance.
The same Cat6 U-UTP solid bulk cable is available in a grey jacket for installations where colour coding between cable runs is required.
Wall outlet terminations at the end of each run can be fitted with a Cat6 UTP RJ45 Australian style jack for consistent structured cabling performance.
Patch panel terminations can be completed using a 24-port Cat5e UTP patch panel with toolless terminationfor efficient structured cabling installations.
