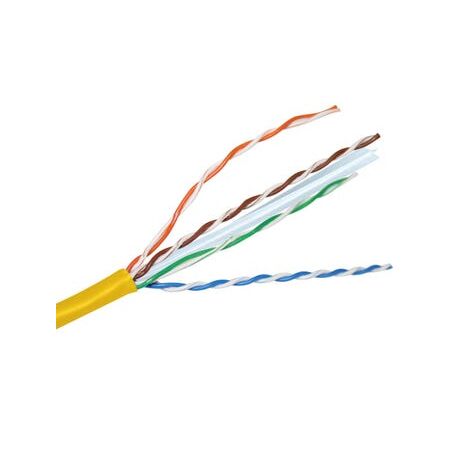

Cat6 UTP Data Cable Solid 23AWG Yellow 305m Box Cabac
Category 6 U-UTP Ethernet cable in vibrant yellow, offering 305 meters of length for high-speed data transfer—ideal for home and office networking. Built for reliabl
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Category: 6
- Length: 305 meters
- Conductor: 23 AWG solid bare copper
- Cable Type: Unshielded Twisted Pair (U-UTP)
- Performance Standards: AS/NZS 11801.1, ANSI/TIA 568.2-D
- Supports Gigabit Ethernet
- Central spline separator to reduce crosstalk
- Packaged in easy feed box
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 3 kg
Key Features
- Category 6 performance with outstanding headroom
- Solid 23 AWG bare copper conductors
- Central spline separator for reduced crosstalk
- Unshielded Twisted Pair (U-UTP) design
- Easy feed box for neat and efficient installation
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure compliance with performance standards and optimal network performance.
Applications
- Permanent network installations from patch panel to wall outlet jack
- Gigabit Ethernet network setups
- Commercial and residential structured cabling
Standards & Compliance
- Complies with AS/NZS 11801.1 for structured cabling
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy-efficient network infrastructure by enabling high-speed data transfer
- Durable solid conductor design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Ethernet Cable Category 6 U-UTP Yellow 305M is available for immediate purchase. Ideal for permanent network installations in commercial and residential buildings.
FAQ
Q: What conductor type does the Cabac MSSCABLE6U-YL use and why does it matter for permanent installations?
A: The MSSCABLE6U-YL uses solid 23AWG bare copper conductors, which are the recommended conductor type for permanent network installations such as in-wall or in-ceiling runs from patch panel to wall outlet jack. The central spline separator further reduces crosstalk for reliable Gigabit Ethernet performance.
Q: What standards does the Cabac MSSCABLE6U-YL comply with?
A: This cable complies with AS/NZS 11801.1 for structured cabling and AS/NZS 3000 — Wiring Rules (Electrical Installation), as well as ANSI/TIA 568.2-D. Professional installation by a qualified technician is recommended to ensure compliance with performance standards and optimal network performance.
For terminating this cable at the outlet end, a Cat6 UTP RJ45 modular keystone jack with QUICK TOOL compatibility is a matched accessory for structured cabling installations.
A 24-port Cat5e UTP patch panel with toolless termination is well suited for patching permanent network runs using this Category 6 cable.
Where a shielded patch panel is required for the same structured cabling system, the 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6A is available as an alternative termination option.
