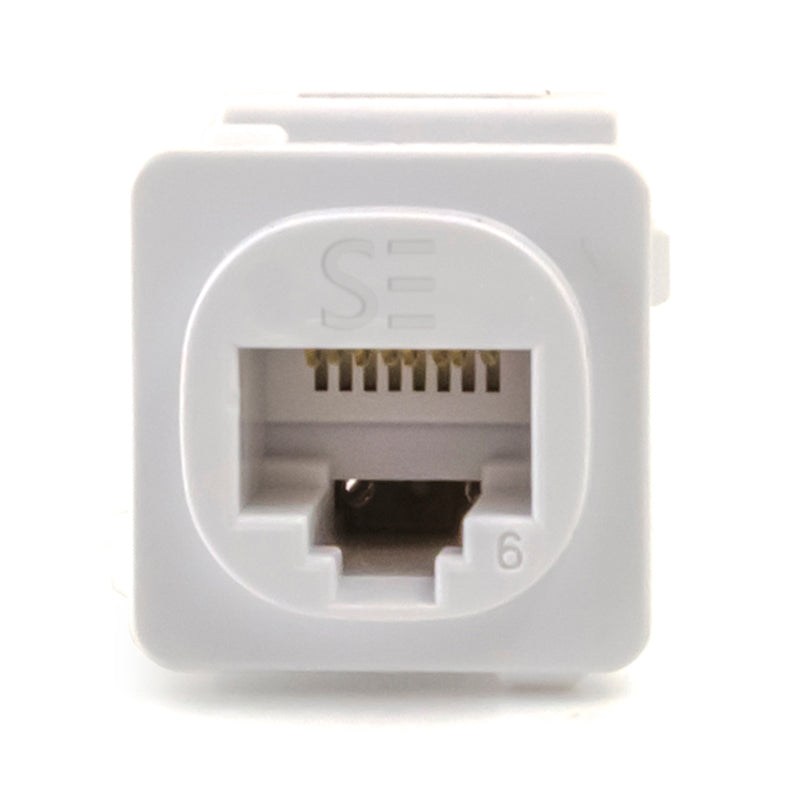

Cat6 UTP RJ45 Australian Style Jack | Compliant with AS/NZS Standards | Flexible Locking Tabs | @Pack of 10 | by SERVEREDGE
The Cat6 UTP RJ45 Australian Style Jack is designed for reliable networking, fully compliant with AS/NZS 3080:2003 and ISO/IEC standards. Ideal for both commercial and residential installations, it features flexible locking tabs for secure connections and is compatible with solid 22-24 AWG conductors. This pack of 10 jacks ensures you have everything you need for efficient data and voice network setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cat6 UTP RJ45 Australian Style Jack | Compliant with AS/NZS Standards | Flexible Locking Tabs | @Pack of 10 | by SERVEREDGE
Brand: SERVEREDGE
SKU: CLMJC6-10WH
Alternatively Known As: Cat6 RJ45 Jack, Cat6 UTP Connector, Australian Style Network Jack, Ethernet Jack Cat6
Technical Specifications
- Compliance: AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002, ANSI/TIA/EIA-568A/B
- Conductor Compatibility: Solid 22-24 AWG
- Flame Retardant Rating: UL 94V-O
- Colour Coding: Universal for 568A and 568B wiring standards
- Technology: Lead frame to prevent PCB failures
- Dimensions (H x L x W): 25mm x 40mm x 20mm
- Weight: 0.05 kg
Key Features
- Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 and ANSI/TIA/EIA-568A/B Series Connecting Hardware Standards
- Backwards compatible with Category 5e products
- Flexible locking tabs for secure connections
- UL 94V-O rated for flame retardancy
- Accepts solid 22-24 AWG diameter conductors
- Universal colour-coding for 568A and 568B wiring standards
- Lead frame technology eliminates the possibility of PCB failures
Professional Installation Requirements
- Installation by a qualified network technician or electrician is recommended to ensure compliance with wiring standards and optimal performance.
Applications
- Networking: Structured cabling for data and voice networks
- Commercial: Office and data center installations
- Residential: Home networking and internet connections
Standards & Compliance
- AS/NZS 3080:2003 – Telecommunications Installations – Generic Cabling for Customer Premises
Environmental Benefits
- Compliant with international standards ensuring reduced electronic waste through backward compatibility
- Durable design reduces replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The SERVEREDGE Cat6 UTP RJ45 Australian Style Jack - White - Pack of 10 is available for immediate purchase, ideal for professional and residential network installations.
