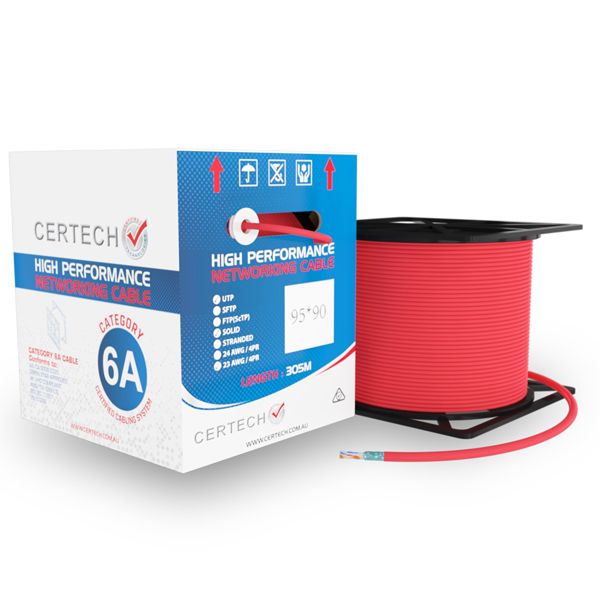

CERTECH 305M Cat6A 10G F/UTP Solid Cable, Red LSZH Jacket

Cat6A 10G Ethernet Cable 305m | F/UTP | Red LSZH Jacket by Certech

BRAND: CERTECH

SKU: NCC6AFUTPRED

$414.30 List price: $511.30

Free pick up (over 1 meter)

For delivery quote message

30 Days Return Delivery Options

Cat6A Ethernet cable with 10G speed and F/UTP construction—ideal for high-speed data transmission in homes and offices. Built for reliability, with a red LSZH jacket for reduced emissions and safety.

Description
Attachments

Product Name/Title: Cat6A 10G Ethernet Cable 305m | F/UTP | Red LSZH Jacket by Certech

Brand: CERTECH

SKU: NCC6AFUTPRED

Alternatively Known As: Cat6A Ethernet Cable, 10G Network Cable, F/UTP Cable

Technical Specifications

Cable Type: F/UTP
Jacket Material: LSZH
Conductor Material: Bare Copper
Insulation Material: HDPE
Cable Length: 305m
Cable Diameter: 0.57mm
Cable Gauge: 23AWG
Jacket Thickness: 0.55±0.05mm
DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair ≤4.0%
DC Resistance (Max.): ≤9.38Ω/100m
Dielectric Strength (Max.): DC 1000V 1min No Breakdown
Mutual Capacitance at Frequency: ≤5.8nF/100m
NVP: 69%
Operating Frequency: 500MHz
Flame Test Method: IEC60332-1-2
Installation Temperature: -10 ~ +50 degrees Celsius
Operating Temperature: -20 ~ +75 degrees Celsius
Dimensions (H x L x W): 100mm x 305000mm x 100mm
Weight: 16 kg

Key Features

F/UTP cable type for reduced interference
LSZH jacket reduces harmful emissions in case of fire
Bare copper conductor with HDPE insulation
Supports operating frequency up to 500MHz
Installation temperature range: -10 to +50°C
Operating temperature range: -20 to +75°C

Professional Installation Requirements

Professional installation is recommended for optimal performance and compliance with local regulations.

Applications

Residential: Home networking
Commercial: Office networking, data centers
General: High-speed data transmission

Standards & Compliance

Complies with AS/CA S008:2010 for telecommunications cabling.

Environmental Benefits

LSZH jacket reduces harmful emissions in case of fire.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CERTECH 305M Cat6A 10G F/UTP Solid Cable, Red LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.

Specification Sheet (ncc6afutpred_u.pdf, 363 Kb) [Download]
