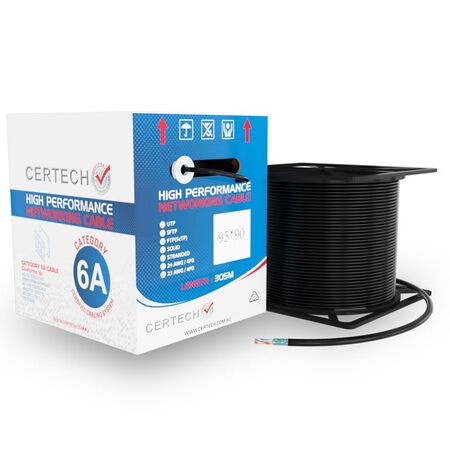

Cat6A F UTP Data Cable Solid 23AWG 500MHz Black 305m Roll Certech
Cat6A 10G F UTP solid cable with 305m length and LSZH jacket—ideal for high-speed data transmission in residential and commercial networks. Built for optimal perform
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: F/UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.55±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 500MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -10 ~ +50 degrees Celsius
- Operating Temperature: -20 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.55mm x 305000mm x 0.57mm
- Weight: 16 kg
Key Features
- 305m roll of Cat6A F/UTP solid cable
- 100% bare copper conductors for optimal performance
- LSZH jacket for reduced smoke and toxicity
- Supports 4K UHD ready applications
- Operating frequency of 500MHz
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Home networking
- Commercial: Office networking, data centers
- General: High-speed data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- LSZH jacket reduces harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6A 10G F/UTP Solid Cable, Black LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: What makes the Certech Cat6A F/UTP Data Cable 305m Black suitable for high-speed and 4K UHD applications?
A: This cable is rated to 500MHz operating frequency with 100% bare copper conductors and F/UTP (foil shielded) construction, supporting 10G data transmission and 4K UHD ready applications. The 23AWG solid conductor and LSZH jacket deliver consistent performance across residential, commercial, and data centre environments.
Q: What does the LSZH jacket on the NCC6AFUTPBLACK offer compared to a standard PVC jacket?
A: The LSZH (Low Smoke Zero Halogen) jacket reduces harmful emissions in case of fire, making this cable appropriate for installations in occupied buildings, data centres, and any environment where fire safety and air quality are a consideration. The cable complies with AS/CA S008:2010 for telecommunications cabling and has been flame tested to IEC60332-1-2.
The same Cat6A F/UTP LSZH solid cable is available in a blue jacket for colour-coded structured cabling installations.
A 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6a cabling is available for centralised termination across large installations.
A Cat6A RJ45 STP keystone socket rated to 10Gbps is available for wall outlet terminations on the same Cat6A infrastructure.
