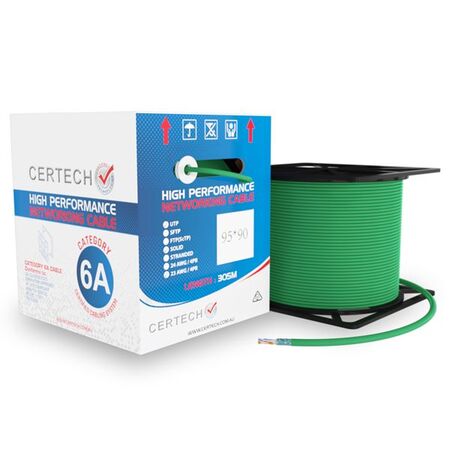

Cat6A F UTP Data Cable Solid 23AWG 500MHz Green 305m Roll Certech
Cat6A F UTP solid cable with 500MHz bandwidth and 100% bare copper conductors—ideal for high-speed data transmission in residential and commercial networks. Built fo
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: F/UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.55±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair ≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 500MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -10 ~ +50 degrees Celsius
- Operating Temperature: -20 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.55mm x 305000mm x 0.57mm
- Weight: 16 kg
Key Features
- 305m roll of Cat6A F/UTP solid cable
- 500MHz bandwidth for high-speed data transmission
- 100% bare copper conductors for optimal performance
- LSZH jacket for reduced smoke and toxicity
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Home networking
- Commercial: Office networking, data centers
- General: High-speed data transmission
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces smoke and toxic emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6A 10G F/UTP Solid Cable with Green LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: What makes the Certech Cat6A F/UTP Data Cable 305m Green suitable for high-speed data transmission?
A: This cable uses 100% bare copper conductors rated to 500MHz bandwidth with an F/UTP foil-shielded construction for reduced interference, supporting 10G data transmission in residential, commercial, and data centre environments across a full 305m roll for extensive installations.
Q: What does the LSZH jacket on the NCC6AFUTPGREEN offer for building installations?
A: The LSZH (Low Smoke Zero Halogen) jacket reduces smoke and toxic emissions in case of fire, making this cable appropriate for occupied buildings, data centres, and telecommunications infrastructure where fire safety compliance is a requirement. The cable has been flame tested to IEC60332-1-2 and complies with AS/NZS 60950 – Safety of IT and Communication Equipment.
The same Cat6A F/UTP LSZH solid cable is available in a grey jacket for colour-coded structured cabling across the same installation.
A Cat6A RJ45 STP keystone socket rated to 10Gbps is available for wall outlet terminations on the same Cat6A structured cabling infrastructure.
A 24-port unloaded shielded patch panel compatible with Cat5e, Cat6, and Cat6a cabling is available for centralised termination across large-scale installations.
