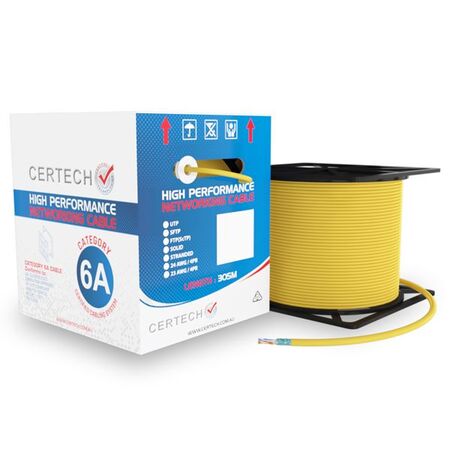

Cat6A F UTP Data Cable Solid 23AWG Yellow 305m Roll Certech
Cat6A F UTP solid cable with 500MHz bandwidth and 100% bare copper conductors—ideal for high-speed data transmission in residential and commercial networks. Built fo
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: F/UTP
- Jacket Material: LSZH
- Conductor Material: Bare Copper
- Insulation Material: HDPE
- Cable Length: 305m
- Cable Diameter: 0.57mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.55±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair ≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 69%
- Operating Frequency: 500MHz
- Flame Test Method: IEC60332-1-2
- Installation Temperature: -10 ~ +50 degrees Celsius
- Operating Temperature: -20 ~ +75 degrees Celsius
- Dimensions (H x L x W): 57mm x 305000mm x 57mm
- Weight: 16 kg
Key Features
- 305m roll of Cat6A F/UTP solid cable
- 500MHz bandwidth for high-speed data transmission
- 100% bare copper conductors for optimal performance
- LSZH jacket for reduced smoke and toxicity
- AS/CA S008:2010 approved
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Residential: Home networking
- Commercial: Office networking, data centers
- General: High-speed data transmission
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling
Environmental Benefits
- LSZH jacket reduces harmful emissions in case of fire.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6A 10G F/UTP Solid Cable, Yellow LSZH Jacket is available now for immediate purchase. Ideal for high-speed networking applications.
FAQ
Q: What shielding type does this Cat6A cable use?
A: This cable uses F/UTP (Foiled Unshielded Twisted Pair) construction — a foil shield wraps the overall cable to reduce electromagnetic interference, while individual pairs remain unshielded. It supports 500MHz operating frequency and is rated for installation temperatures between -10 and +50 degrees Celsius.
Q: Is this cable suitable for installation in areas with fire risk or smoke concerns?
A: Yes. The LSZH (Low Smoke Zero Halogen) jacket reduces harmful emissions in the event of fire, making it appropriate for installations where smoke toxicity is a consideration, such as enclosed commercial spaces or data centres. The cable also complies with AS/CA S008:2010 for telecommunications cabling.
For shielded termination to match, the Cat6A S/FTP data cable solid 23AWG 500MHz LSZH yellow 500m drum from Legrand is worth considering for larger network runs.
Terminate this cable at the patch point using a Cat6A RJ45 STP keystone socket rated for 10 Gbps data rates.
A Cat6A UTP patch panel with 24 unloaded shielded ports provides a compatible termination solution for structured cabling applications using this cable.
