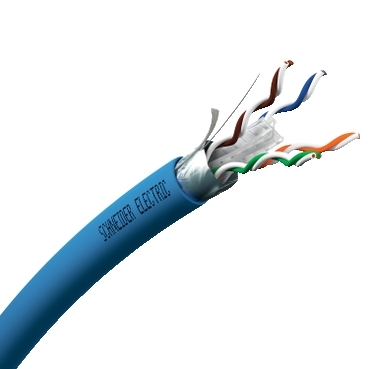

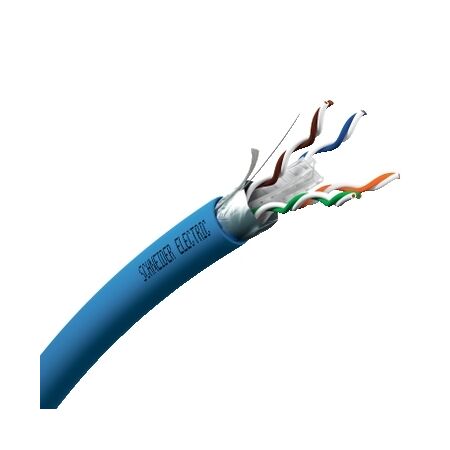

CAT6A FTP Cable Blue | 305M Length | 10GBASE-T Support | LSZH Jacket | @Pack of 1 | by Clipsal

BRAND: Clipsal
SKU: CLIACTTG4P6ASCM3RBU
$480.30 List price: $598.50
+
The CAT6A FTP Cable Blue is designed for high-speed networking, featuring a 305-meter length and support for 10GBASE-T Ethernet. With its LSZH jacket, this cable ensures safety and compliance for commercial and industrial installations, making it ideal for data centers, server rooms, and enterprise networks.

Product Name/Title: CAT6A FTP Cable Blue | 305M Length | 10GBASE-T Support | LSZH Jacket | @Each of 1 | by Clipsal

Brand: Clipsal

SKU: CLIACTTG4P6ASCM3RBU

Alternatively Known As: CAT6A Shielded Cable, CAT6A FTP Data Cable, CAT6A Foil Twisted Pair Cable, 10G Ethernet Cable, CAT6A Network Cable, Clipsal CAT6A Cable

Technical Specifications
  • Cable Type: CAT6A F/UTP (Foiled Unshielded Twisted Pair)
  • Length: 305 metres (pull box)
  • Conductor: 23 AWG solid bare copper
  • Shielding: Overall foil shield
  • Jacket: LSZH (Low Smoke Zero Halogen), Blue
  • Bandwidth: 500 MHz
  • Supports: 10GBASE-T (10 Gigabit Ethernet)
  • Compliance: ISO/IEC 11801, ANSI/TIA-568-C.2
  • Operating Temperature: -20°C to +60°C
  • Dimensions (H x L x W): 400mm x 400mm x 400mm
  • Weight: 13.5 kg
Key Features
  • Category 6A (CAT6A) F/UTP (Foiled Unshielded Twisted Pair) construction for superior noise immunity
  • Supports 10 Gigabit Ethernet (10GBASE-T) up to 100 metres
  • 305 metre pull box for easy installation
  • Blue LSZH (Low Smoke Zero Halogen) sheath for enhanced safety
  • Individually foil-shielded pairs to reduce crosstalk and electromagnetic interference
  • Complies with ISO/IEC 11801 and ANSI/TIA-568-C.2 standards
Professional Installation Requirements
  • Installation by a qualified data cabling technician is recommended to ensure compliance with Australian standards and optimal network performance.
Applications
  • Commercial and industrial structured cabling
  • Data centres and server rooms
  • High-speed Ethernet networks (10GBASE-T)
  • Office and enterprise network installations
  • Audio/visual and security system cabling
Standards & Compliance
  • Complies with AS/NZS 3080 for information technology cabling
  • Complies with AS/NZS 60950 for safety of IT and communication equipment
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) sheath reduces toxic emissions in case of fire
  • Durable construction extends cable lifespan, reducing replacement waste
Warranty Information

25-year system warranty when installed as part of a certified Clipsal structured cabling system.

Available Now

The Clipsal CAT6A FTP Cable Blue (305m) is available for immediate purchase. Ideal for high-speed commercial and industrial network installations.
