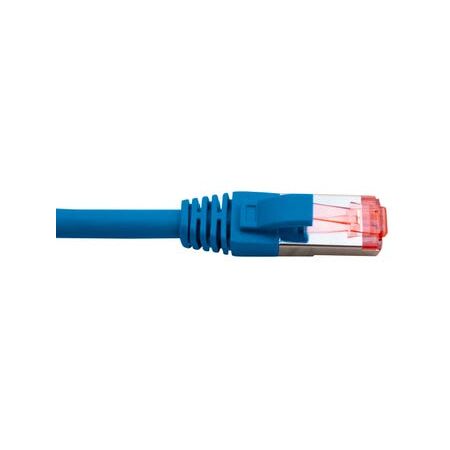

Cat6A FTP Patch Lead RJ45 1.5m 500MHz 26AWG LSZH Blue Cabac
Cabac Cat6A FTP patch lead features 1.5m length, 500MHz, 26AWG. Ideal for structured cabling and network installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Category: CAT6A (Augmented Category 6)
- Frequency: Up to 500 MHz
- Conductor: 26AWG Copper
- Shielding: S-FTP (Shielded Foiled Twisted Pair) with individual foil shielding per pair and overall braided shield
- Compliance: RCM/A-Tick (S008), TIA-568-C.2 Cat6A, RoHS
- Power over Ethernet: Supports PoE Class 8 up to 72W
- Backward Compatibility: Compatible with CAT5, CAT5e, and CAT6
- Dimensions (H x L x W): 5mm x 1500mm x 5mm
- Weight: 0.1 kg
Key Features
- Category 6a (CAT6 Augmented) supports frequencies up to 500MHz
- S-FTP construction for high level noise immunity
- 26AWG copper conductors
- Double shielding: individual foil shielded twisted pairs plus overall braided wire shield
- Shielding connected to metal frame integral to RJ connector
- Backward compatible with CAT5, CAT5e, and CAT6
- Supports PoE Class 8 with max 72W power
Professional Installation Requirements
- Installation by a qualified technician or network professional is recommended to ensure optimal performance and compliance with standards.
Applications
- High-speed data transmission in hospitals
- Telecommunications operations infrastructure
- Radio and television broadcast applications
- X-ray theatres
- Near mains power transmission lines, switch yards, and substations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS compliant, free from hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy for details.
Available Now
The Cabac 1.5 Metre 4 Pair LSZH Shielded RJ45 - RJ45 Cat6A Blue Patch Lead is available now for immediate purchase. Ideal for high-speed data communication in professional and industrial environments.
